Diagnostic Trouble Code (DTC) Confirmation Procedure

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

WITH CONSULT-II

Turn ignition switch ON.
Select "DATA MONITOR" mode with CONSULT-II.
Wait at least 5 seconds.
If 1st trip DTC is detected, go to "Diagnostic Procedure ".

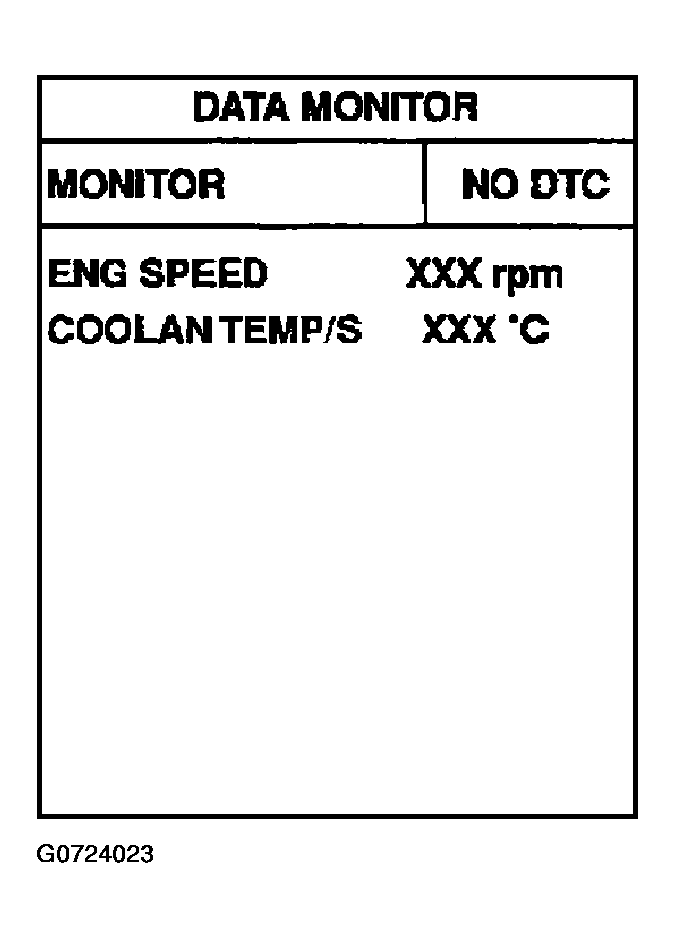

Fig 1: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

WITH GST

Follow the procedure "With CONSULT-II" above.
