AWD Models

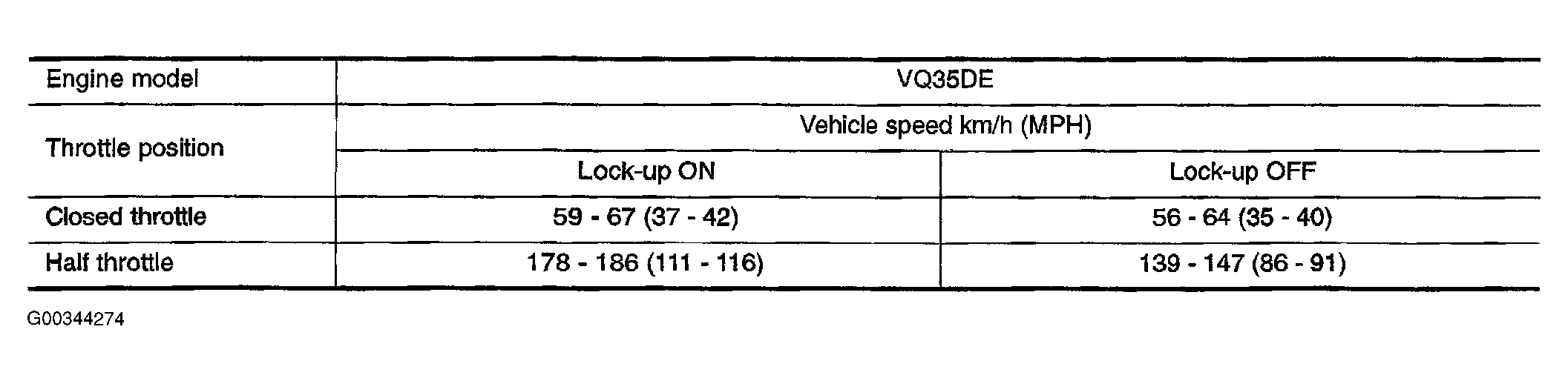

Fig 1: Correlating Lock-Up Condition To Vehicle Speed (VQ35DE - AWD)

G00344274

Courtesy of NISSAN MOTOR CO., U.S.A.

At closed throttle, the accelerator opening is less than 1/8 condition.
At half throttle, the accelerator opening is 4/8 of the full opening.

Fig 2: Correlating Lock-Up Condition To Vehicle Speed (VK45DE)

G00344275

Courtesy of NISSAN MOTOR CO., U.S.A.

At closed throttle, the accelerator opening is less than 1/8 condition.
At half throttle, the accelerator opening is 4/8 of the full opening.
