System - Engine Mechanical & Other

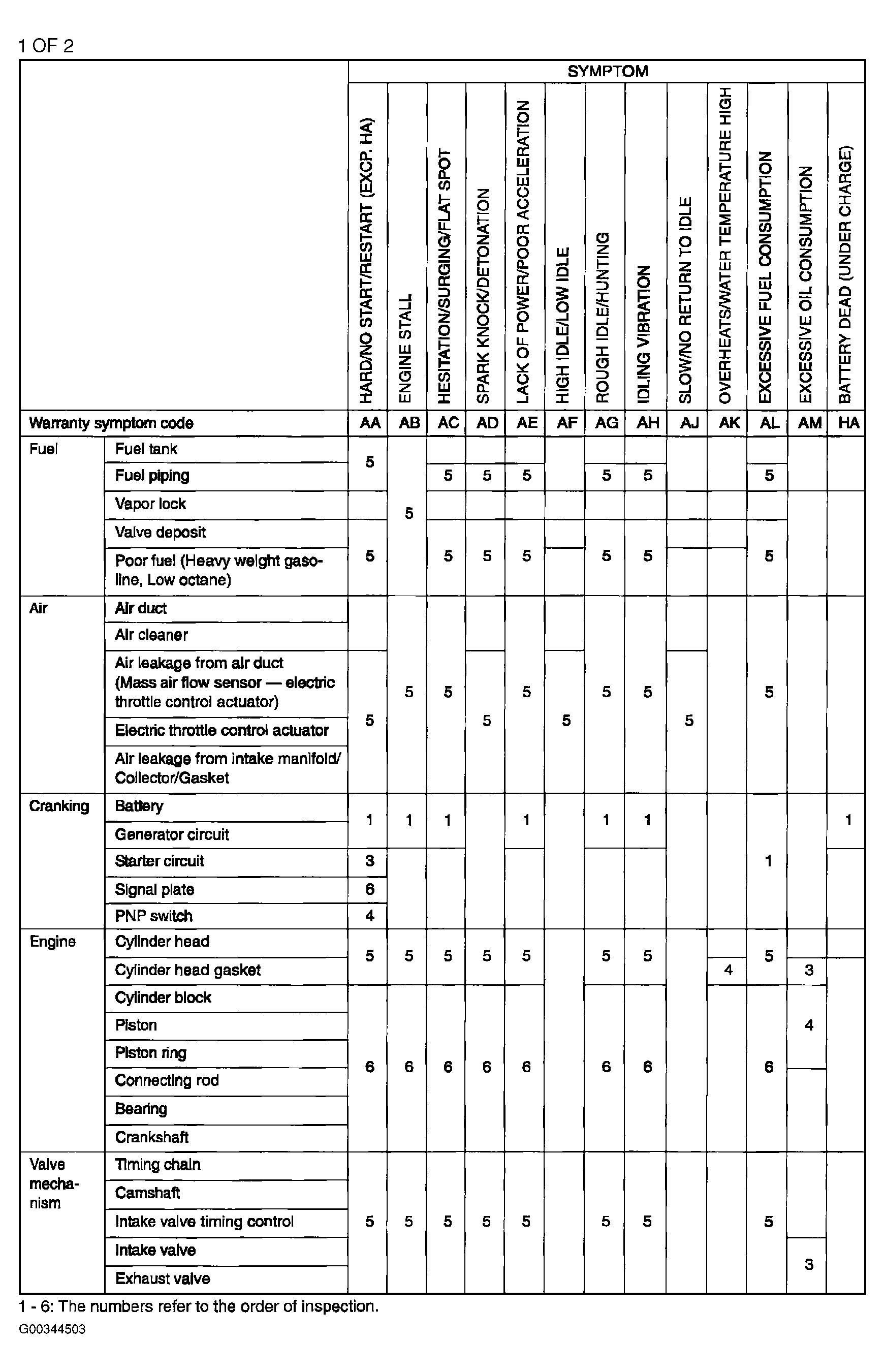

Fig 1: Isolating Engine Mechanical System Symptoms (1 Of 2)
G00344503Courtesy of NISSAN MOTOR CO., U.S.A.

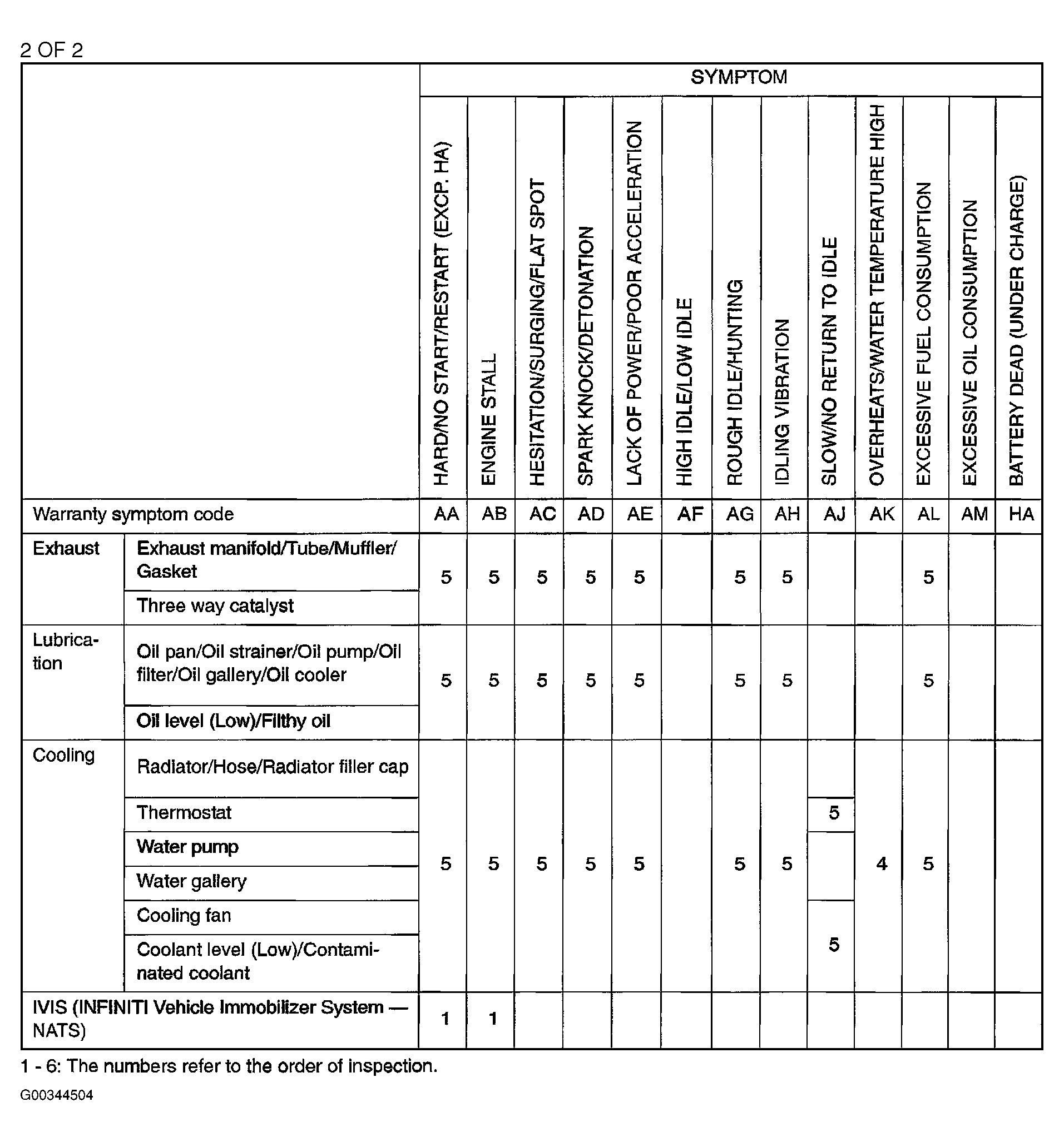

Fig 2: Isolating Engine Mechanical System Symptoms (2 Of 2)
G00344504Courtesy of NISSAN MOTOR CO., U.S.A.
