Fail-Safe Mode

When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.

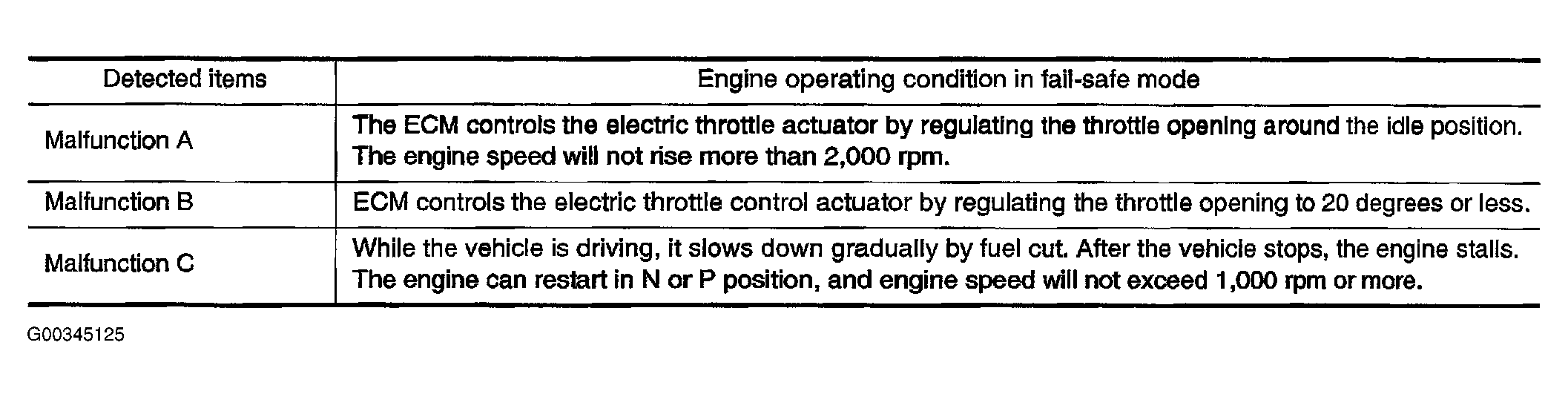

Fig 1: Identifying Engine Operating Conditions In Fail-Safe Modes (DTC P1121)
G00345125Courtesy of NISSAN MOTOR CO., U.S.A.
