CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

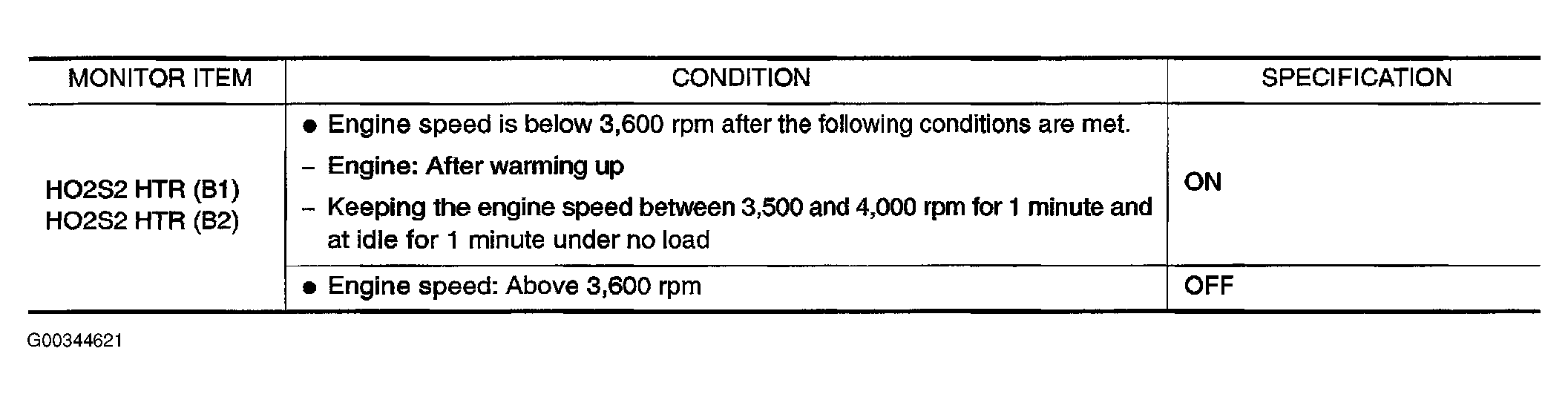

Fig 1: Identifying Heated Oxygen Sensor 2 Bank 1 & 2 Operational Specifications (CONSULT-II)
G00344621Courtesy of NISSAN MOTOR CO., U.S.A.
