Terminal and Reference Value for Power Window Main Switch - With Front and Rear Power Window Anti-pinch System

NOTE: For System Wiring Diagrams, see FX35 SYSTEM WIRING DIAGRAMS or FX45 SYSTEM WIRING DIAGRAMS .

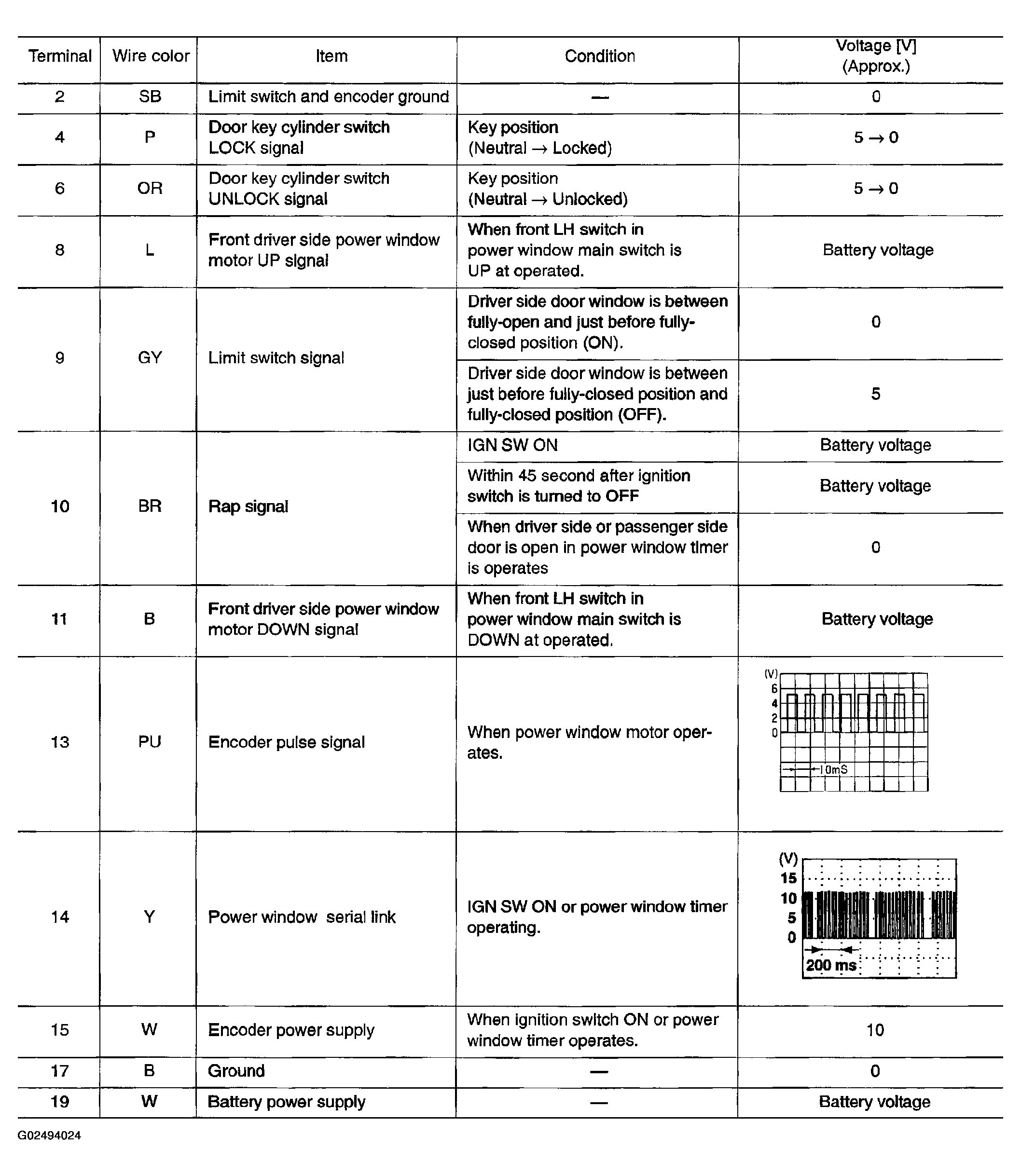

Fig 1: Power Window Main Switch Terminal Specifications (W/Front & Rear Power Window Anti-Pinch System)

Courtesy of NISSAN MOTOR CO., U.S.A.
