3. Check Ignition Knob Switch Operation

Check continuity between key switch and ignition knob switch terminals 1 and 2.

Fig 1: Ignition Knob Switch Continuity Table

Courtesy of NISSAN MOTOR CO., U.S.A.

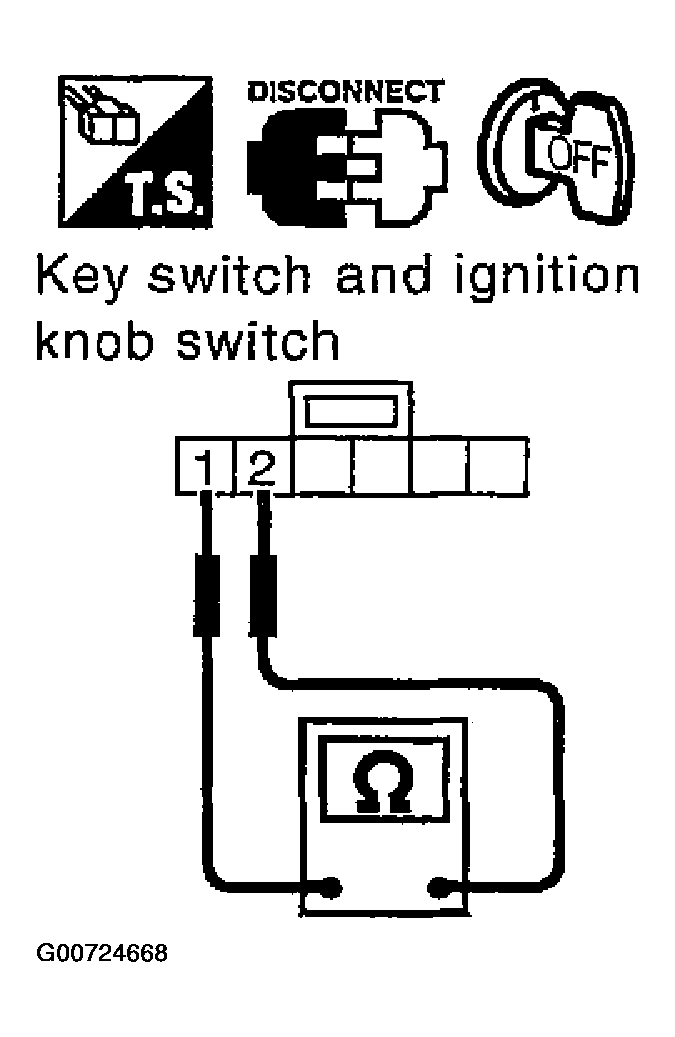

Fig 2: Checking Continuity Between Key Switch And Ignition Knob Switch Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 4.

NG : Replace key switch and ignition knob switch.
