AWD Models

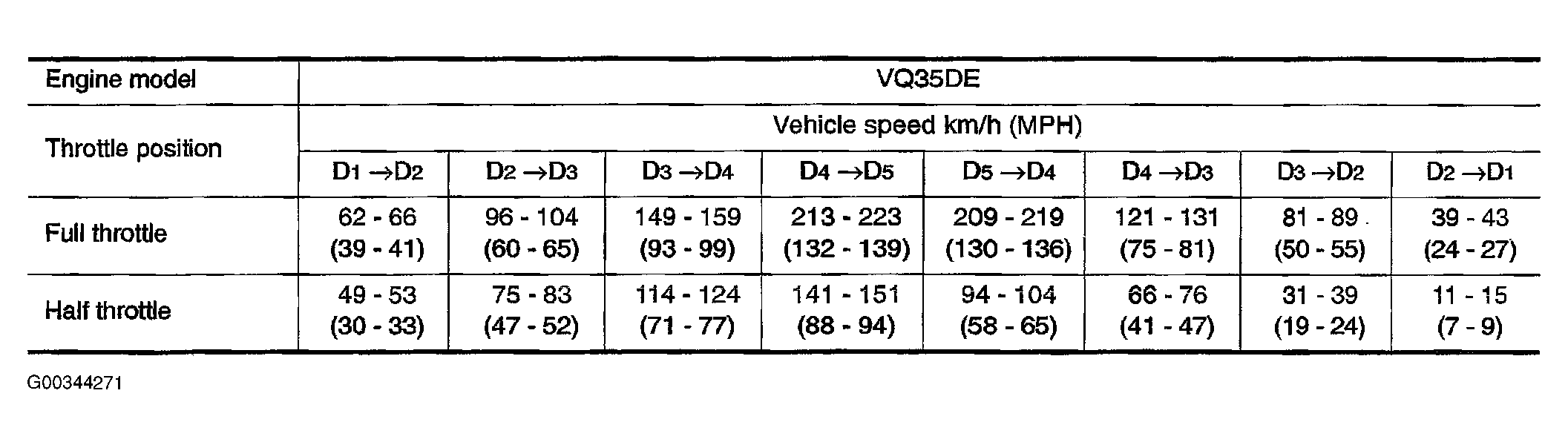

Fig 1: Correlating Gear Position To Vehicle Speed (VQ35DE - AWD)
G00344271Courtesy of NISSAN MOTOR CO., U.S.A.

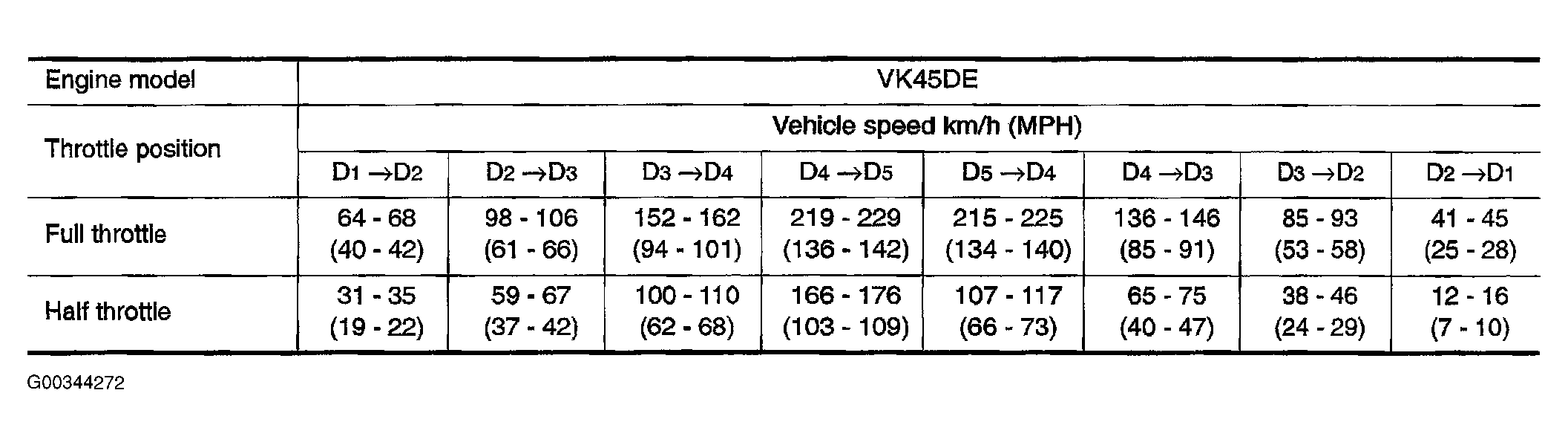

Fig 2: Correlating Gear Position To Vehicle Speed (VK45DE)
G00344272Courtesy of NISSAN MOTOR CO., U.S.A.
