AWD Models

Fig 1: Correlating Slip Lock-Up Condition To Vehicle Speed (VQ35DE - AWD)
G00344277Courtesy of NISSAN MOTOR CO., U.S.A.

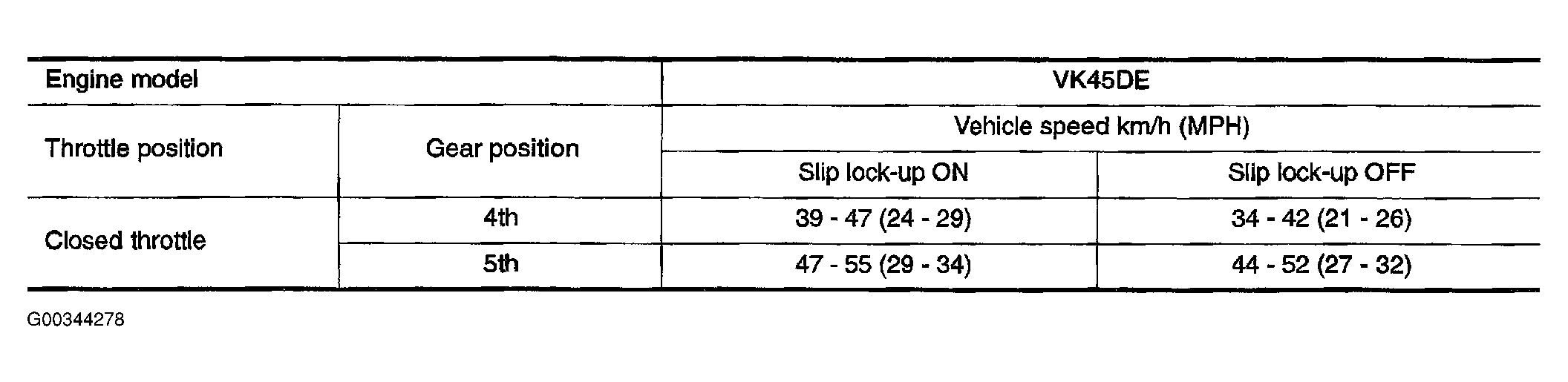

Fig 2: Correlating Slip Lock-Up Condition To Vehicle Speed (VK45DE)
G00344278Courtesy of NISSAN MOTOR CO., U.S.A.
