Vehicle Speed When Performing And Releasing Complete Lock-Up
>>
2WD Models
2WD Models

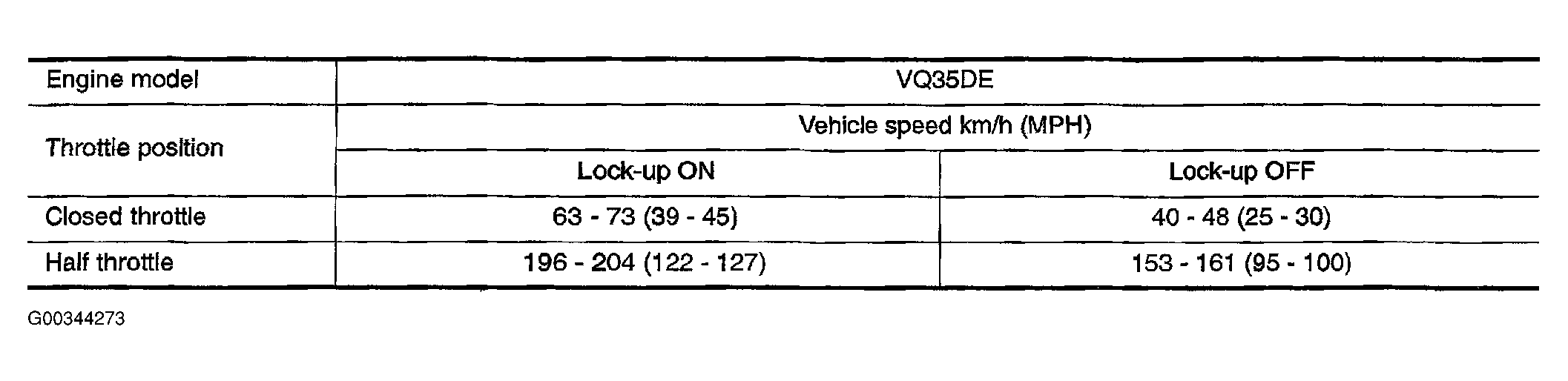

Fig 1: Correlating Lock-Up Condition To Vehicle Speed (VQ35DE - 2WD)
Courtesy of NISSAN MOTOR CO., U.S.A.
At closed throttle, the accelerator opening is less than 1/8 condition.
At half throttle, the accelerator opening is 4/8 of the full opening.
Courtesy of NISSAN MOTOR CO., U.S.A.
