Solenoid Valve Operation Chart

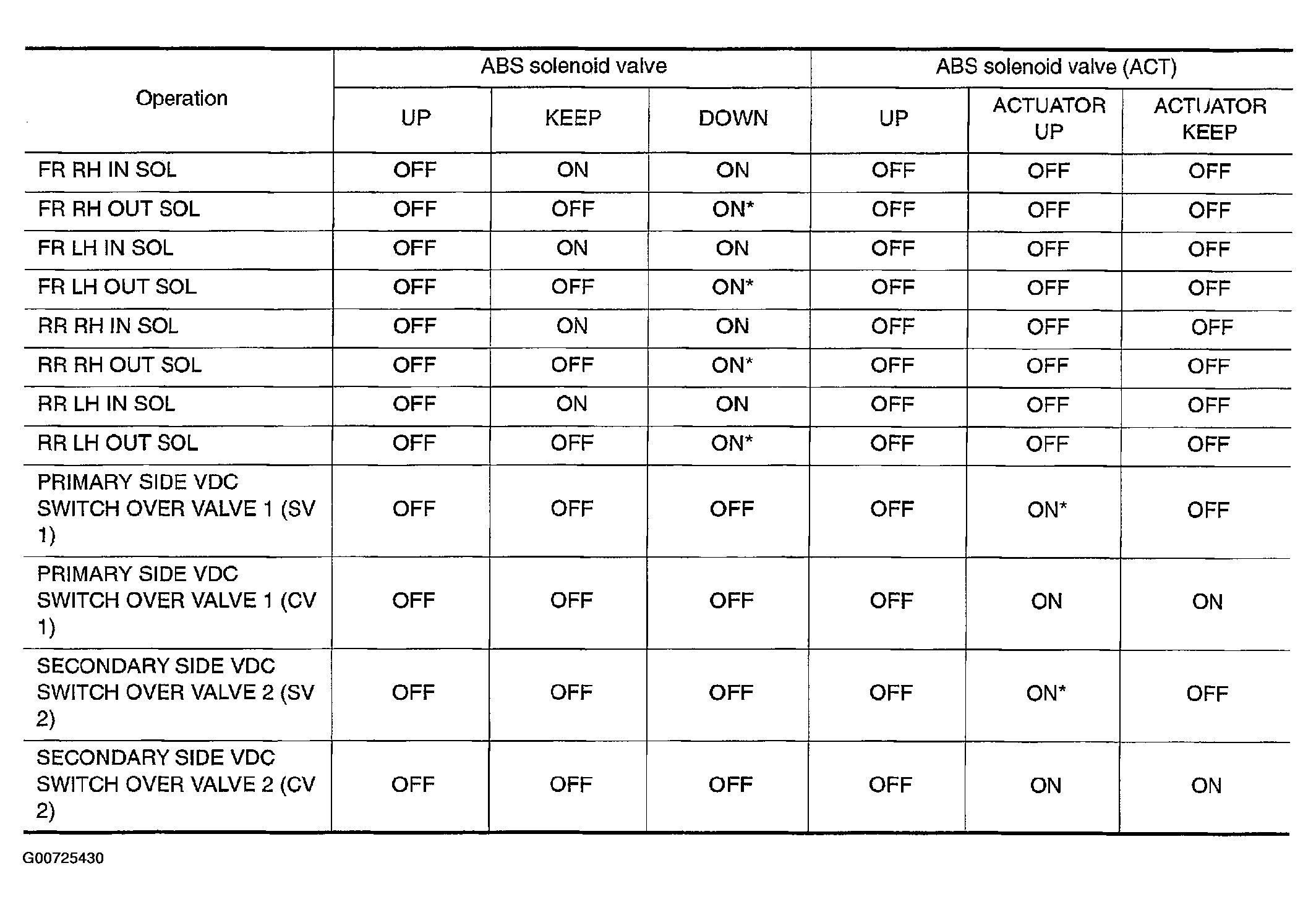

Fig 1: Displaying Solenoid Valve Operation Chart
G00725430Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
  • "TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
  • After "TEST IS STOPPED" is displayed, touch "BACK" and conduct the test from step  8.
