Terminals And Reference Value For ICC Sensor

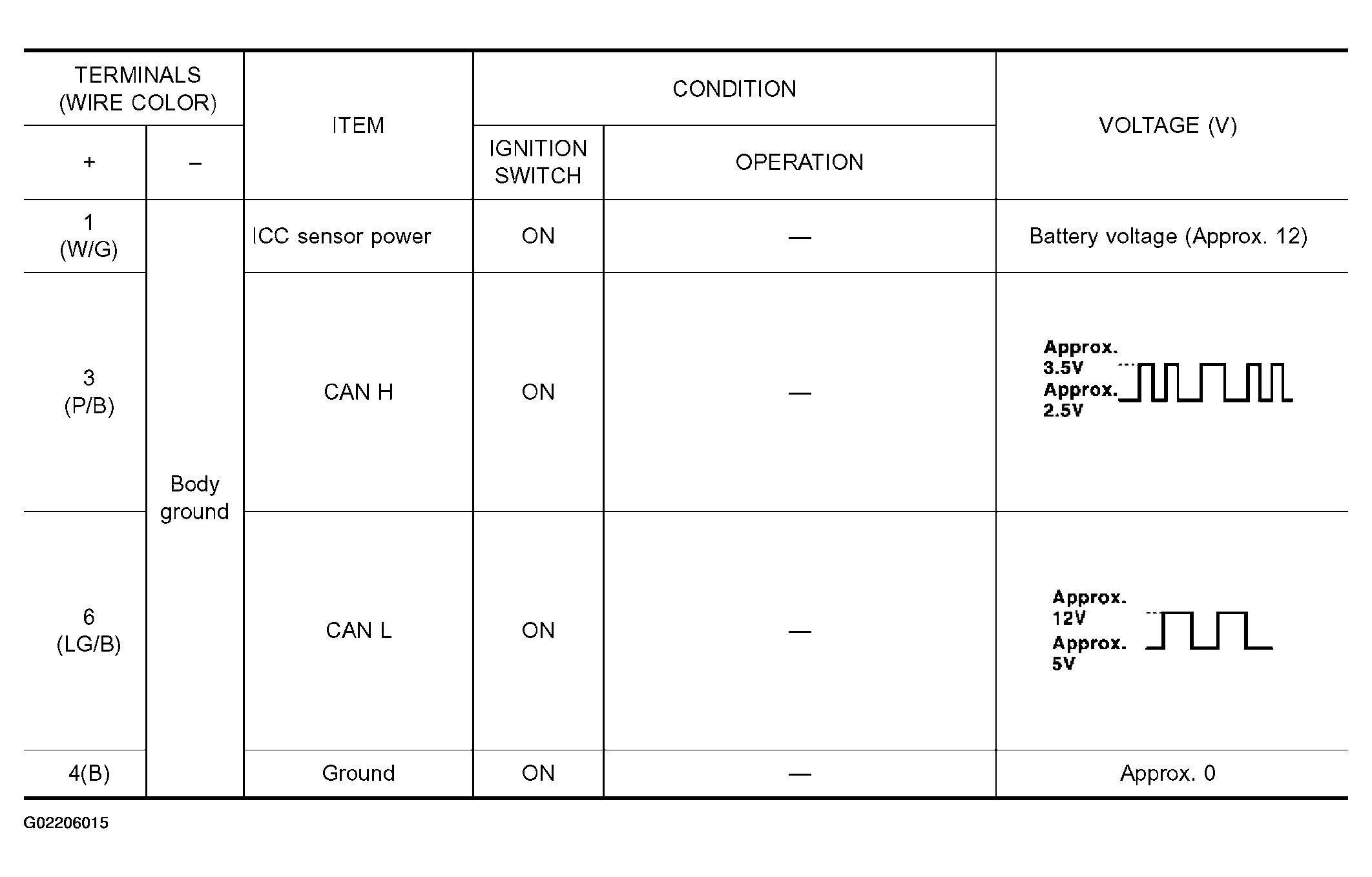

Fig 1: Terminals & Reference Value For ICC Sensor

G02206015

Courtesy of NISSAN MOTOR CO., U.S.A.
