Symptom Chart

NOTE:
  • Always check keyfob battery before replacing keyfob.
  • The panic alarm operation of remote keyless entry system does not activate with the ignition key inserted in the ignition key cylinder.

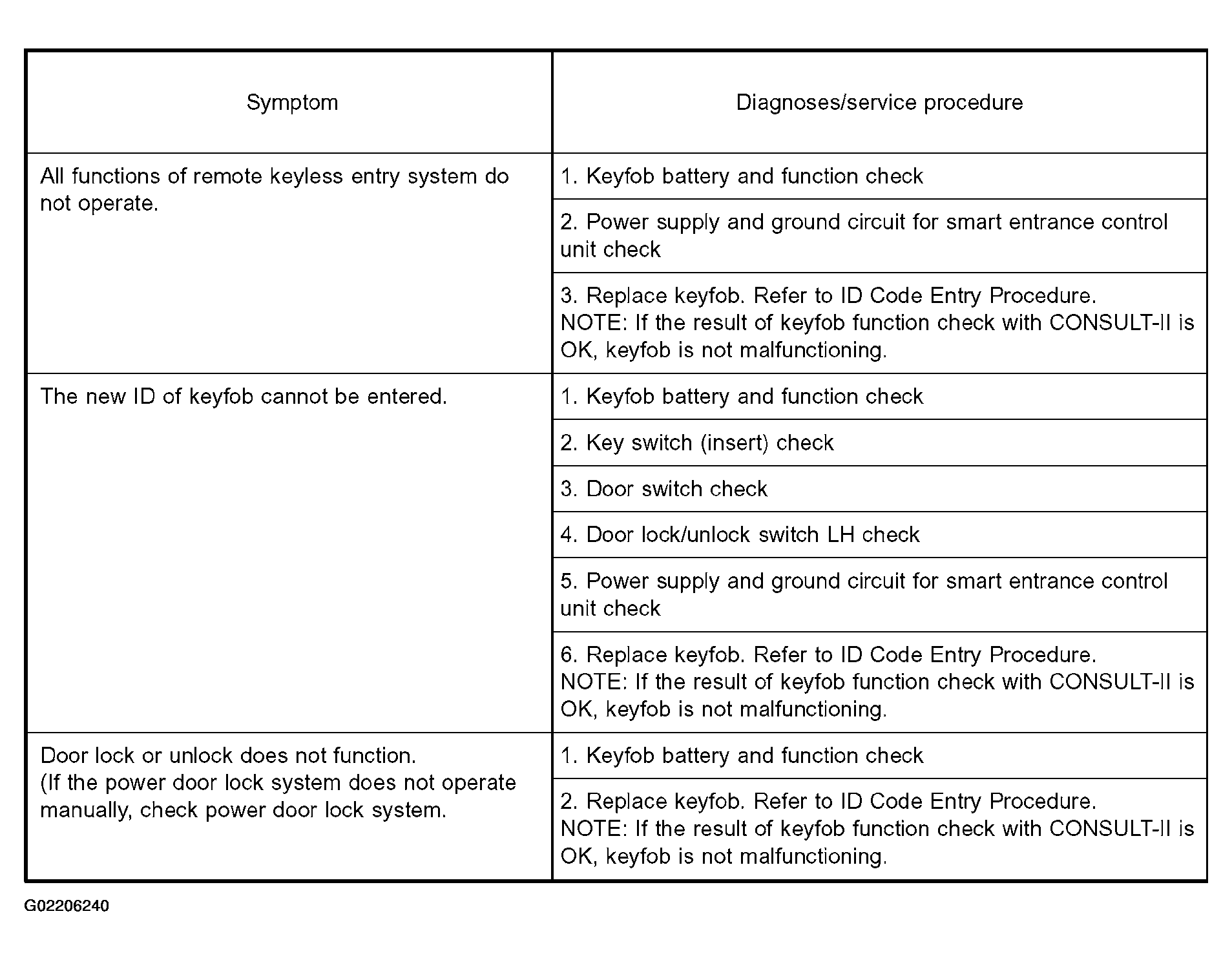

    Fig 1: Trouble Diagnoses Symptom Chart (1 Of 2)
    G02206240Courtesy of NISSAN MOTOR CO., U.S.A.

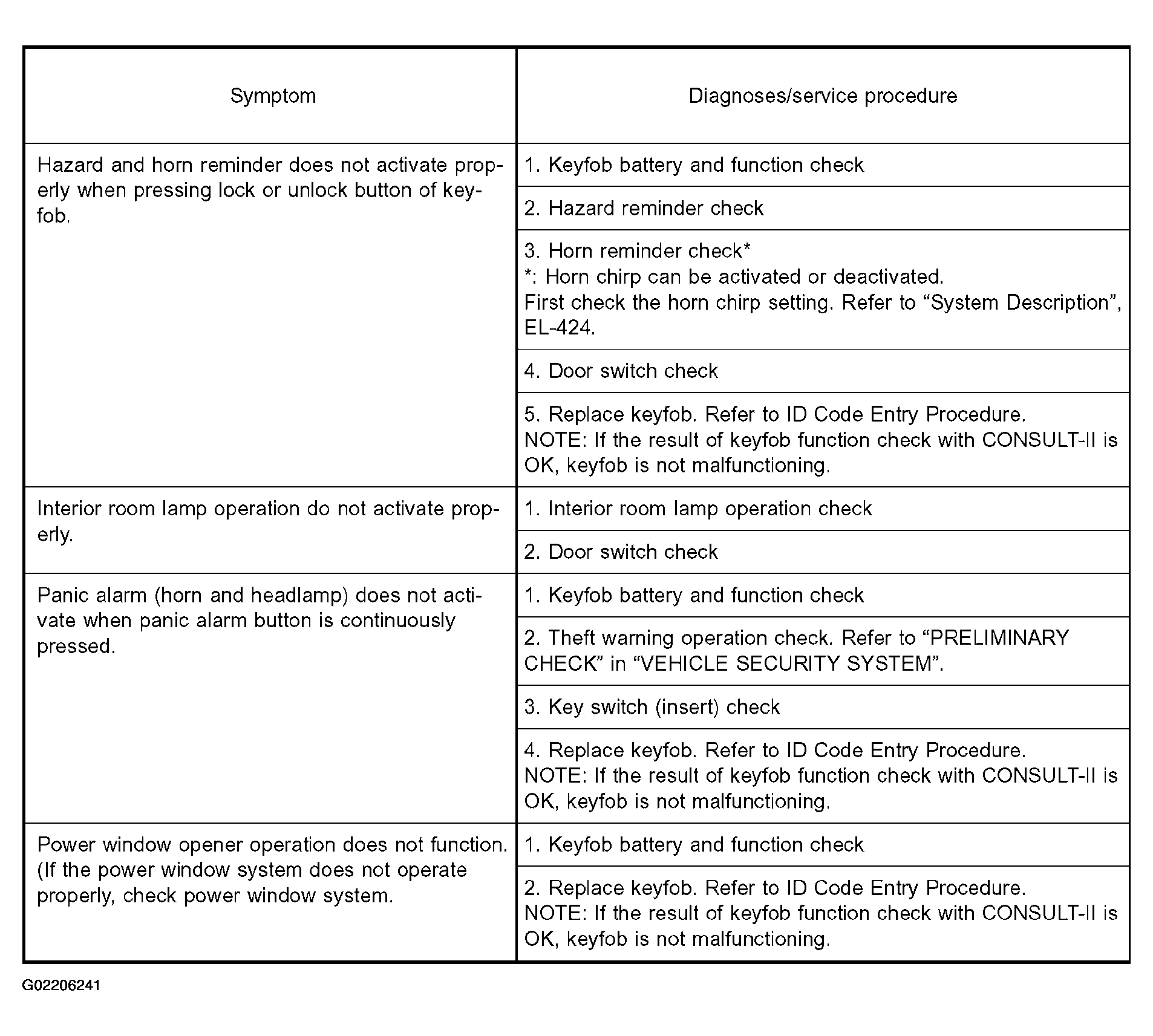

Fig 2: Trouble Diagnoses Symptom Chart (2 Of 2)
G02206241Courtesy of NISSAN MOTOR CO., U.S.A.
