Terminals And Reference Value For ICC Warning Chime

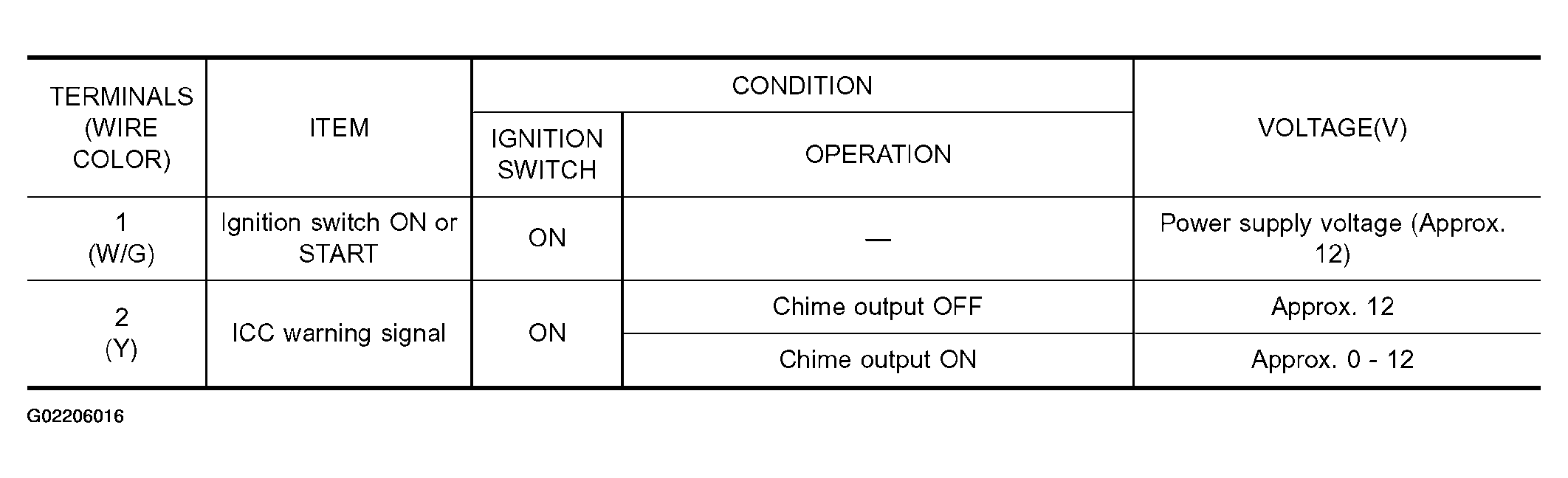

Fig 1: Terminals & Reference Value For ICC Warning Chime

G02206016

Courtesy of NISSAN MOTOR CO., U.S.A.
