Solenoid Valve Operation Chart

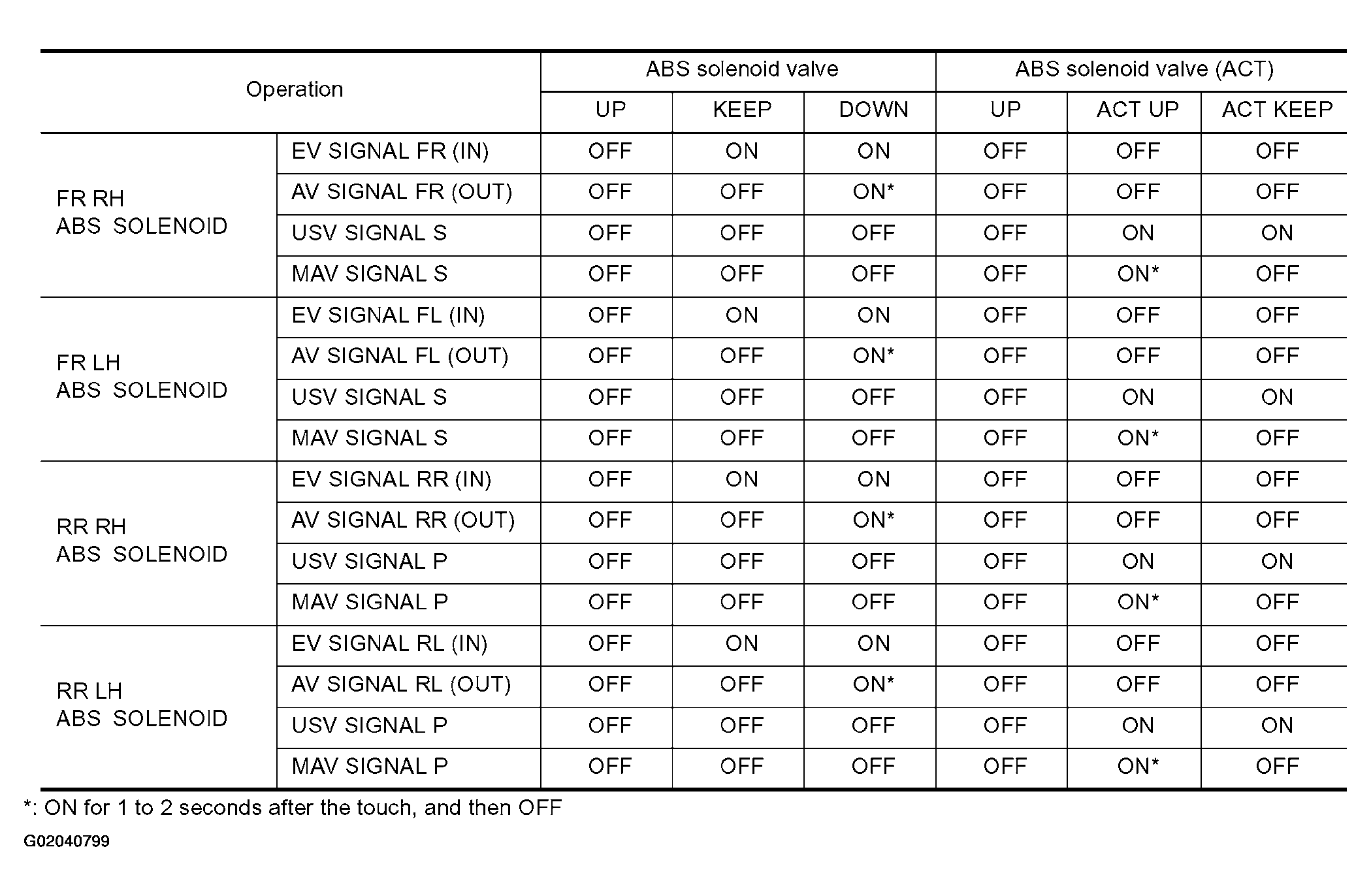

Fig 1: Solenoid Valve Operation Chart
G02040799Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
  • "TEST STOP" is displayed approximately 6 seconds after operation starts.
  • After "TEST STOP" is displayed, to perform test again, repeat step 6.
