2. Check Ground Circuit For ASCD Control Unit

Check continuity between ASCD control unit harness connector M35 terminal 4 (B/W), 17(B) and ground.

Dose continuity exist?

Fig 1: Checking Ground Circuit for ASCD Control Unit

Courtesy of NISSAN MOTOR CO., U.S.A.

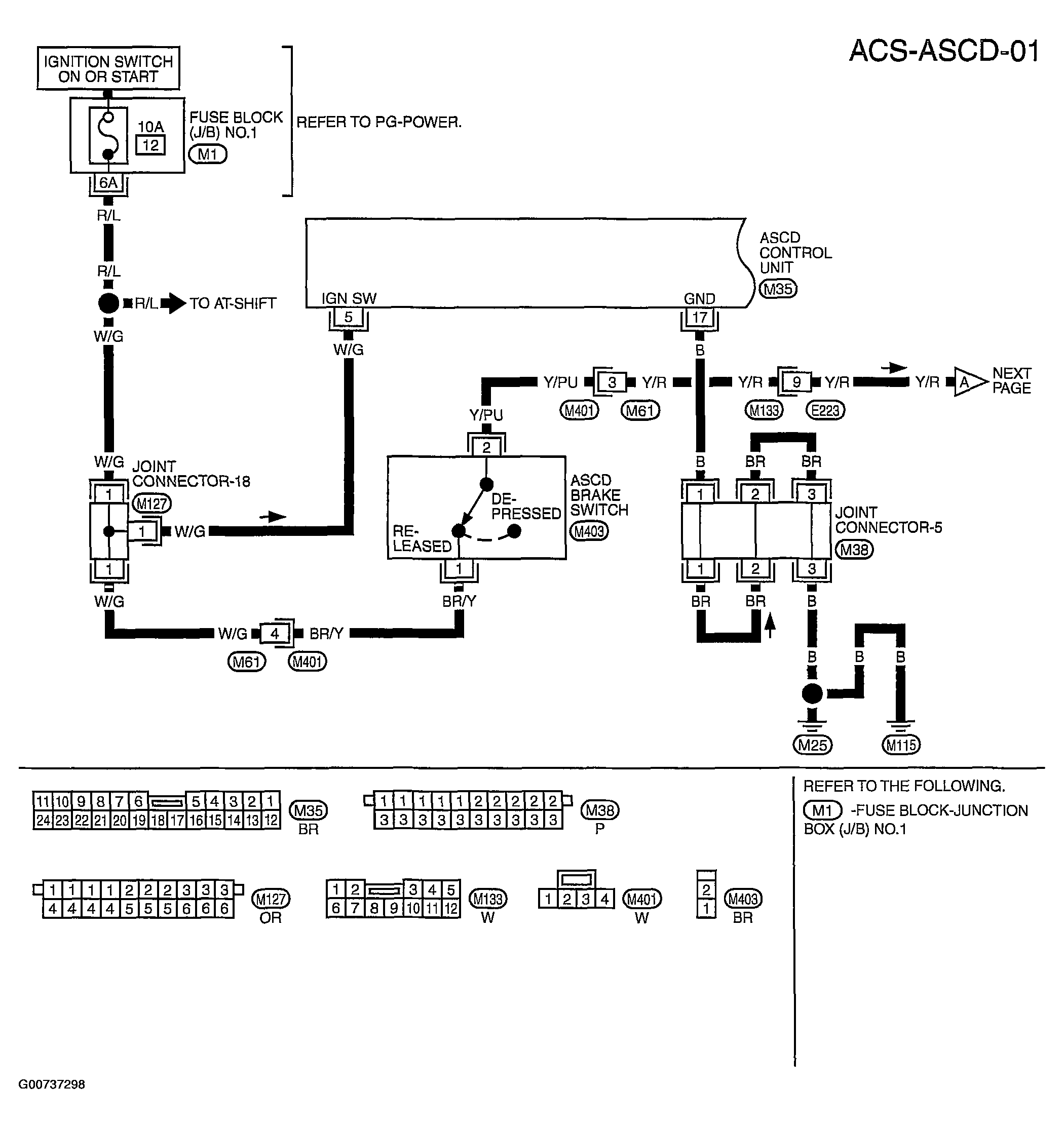

Refer to wiring diagram in Figure .

Yes or No

1. Yes : Power supply and ground circuit is OK.
2. No : Repair harness or connector.
