Wiring Diagram & Reference Data For Intake Air Temperature Sensor

For wiring diagram, specification data and reference values for Intake Air Temperature (IAT) sensor, see Fig 1 and Fig 2 .

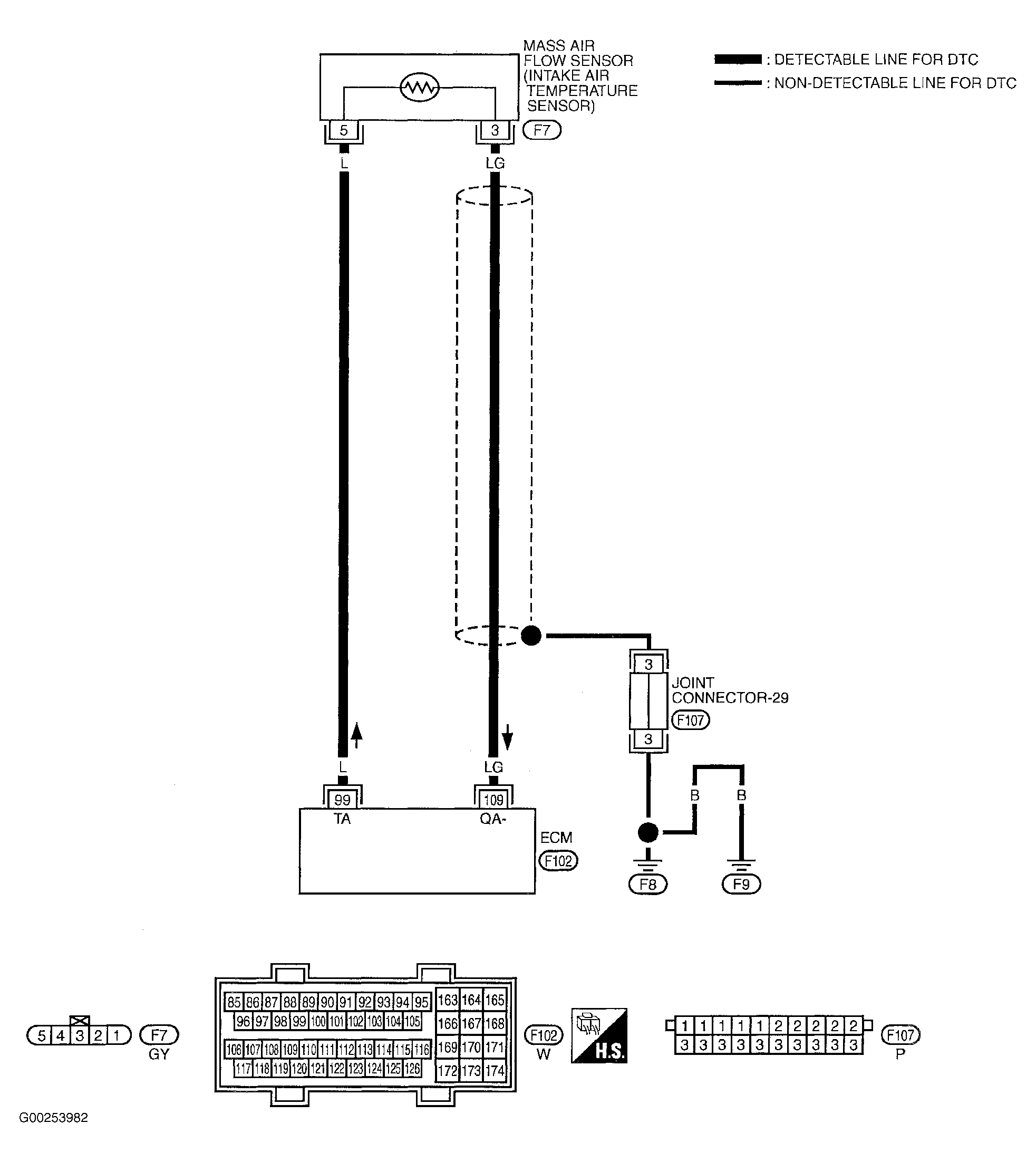

Fig 1: Wiring Diagram For Intake Air Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

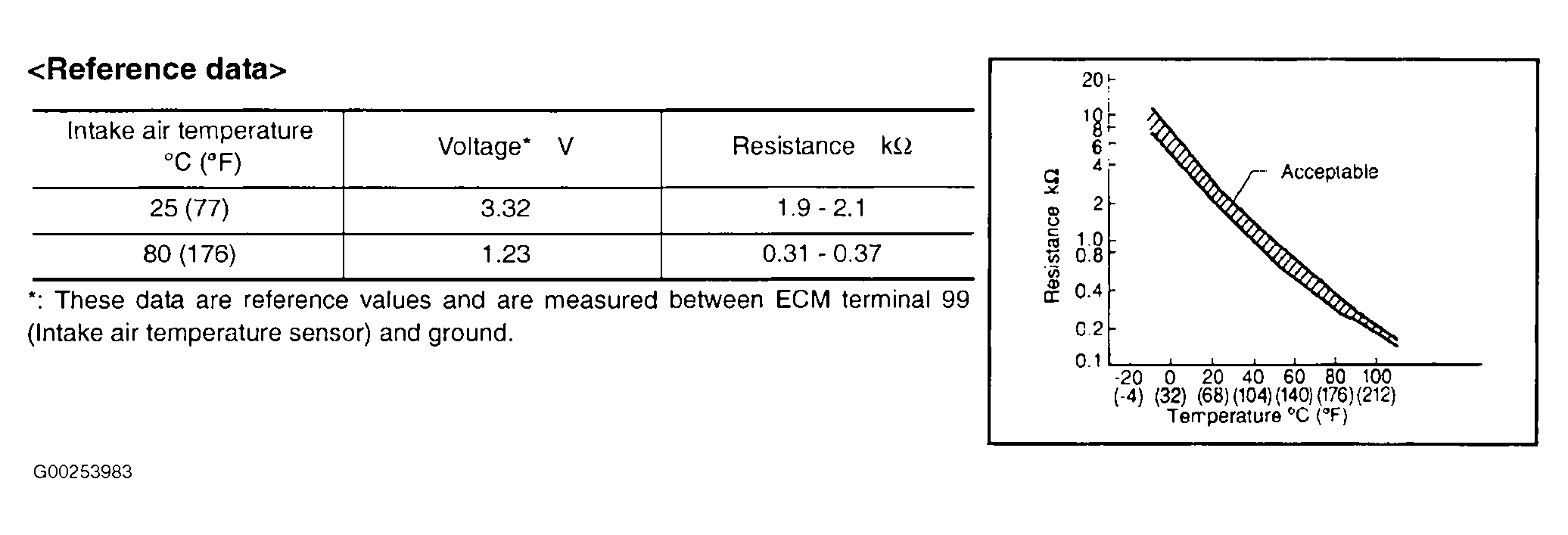

Fig 2: Reference Data For Intake Air Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
