Terminals and Reference Value for Passenger, Rear LH, RH Door Control Unit

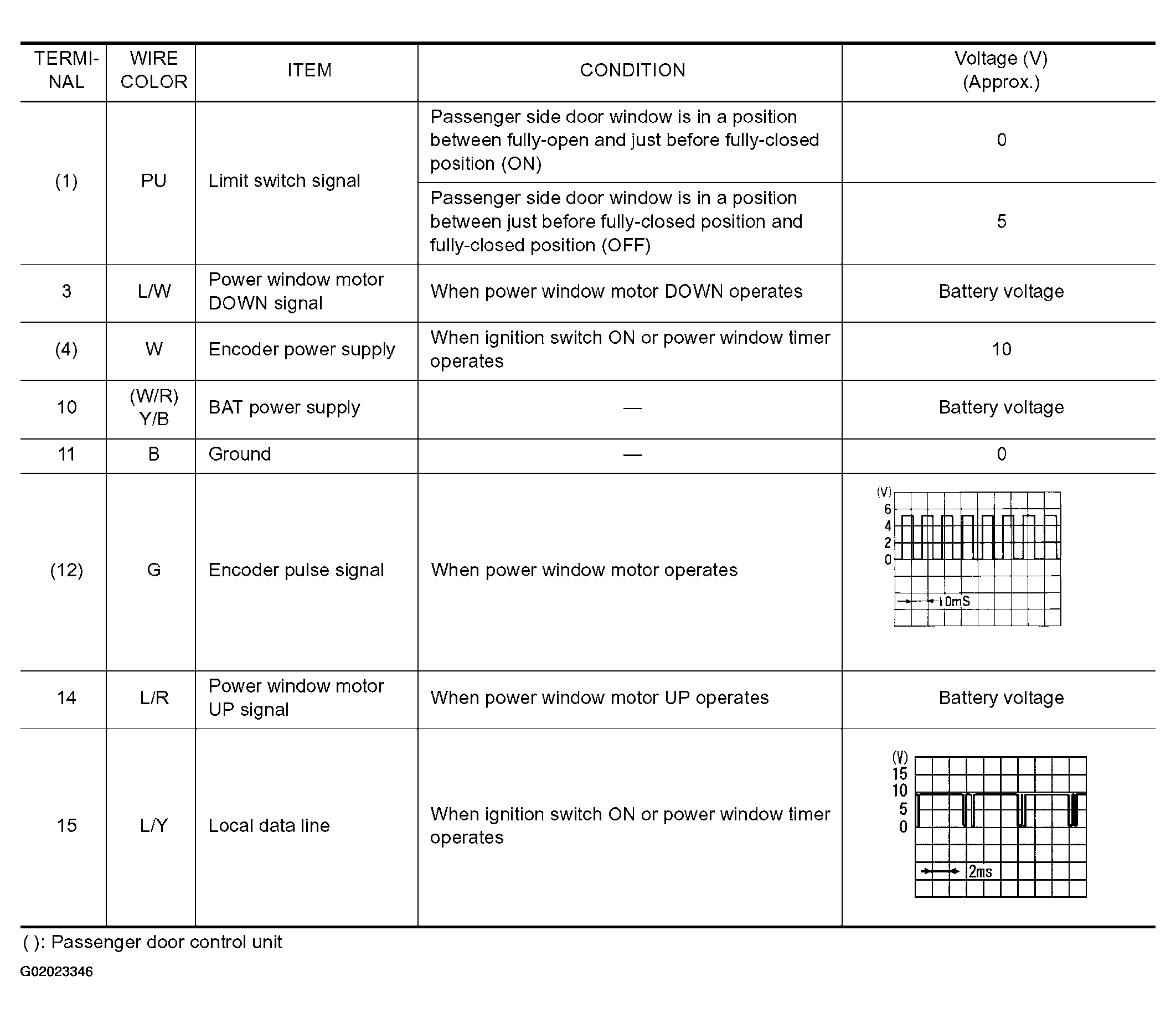

Fig 1: Terminals And Reference Value Chart (Passenger, Rear LH, RH Door Control Unit)

G02023346

Courtesy of NISSAN MOTOR CO., U.S.A.
