TCM Inspection Table

(Data are reference values.)

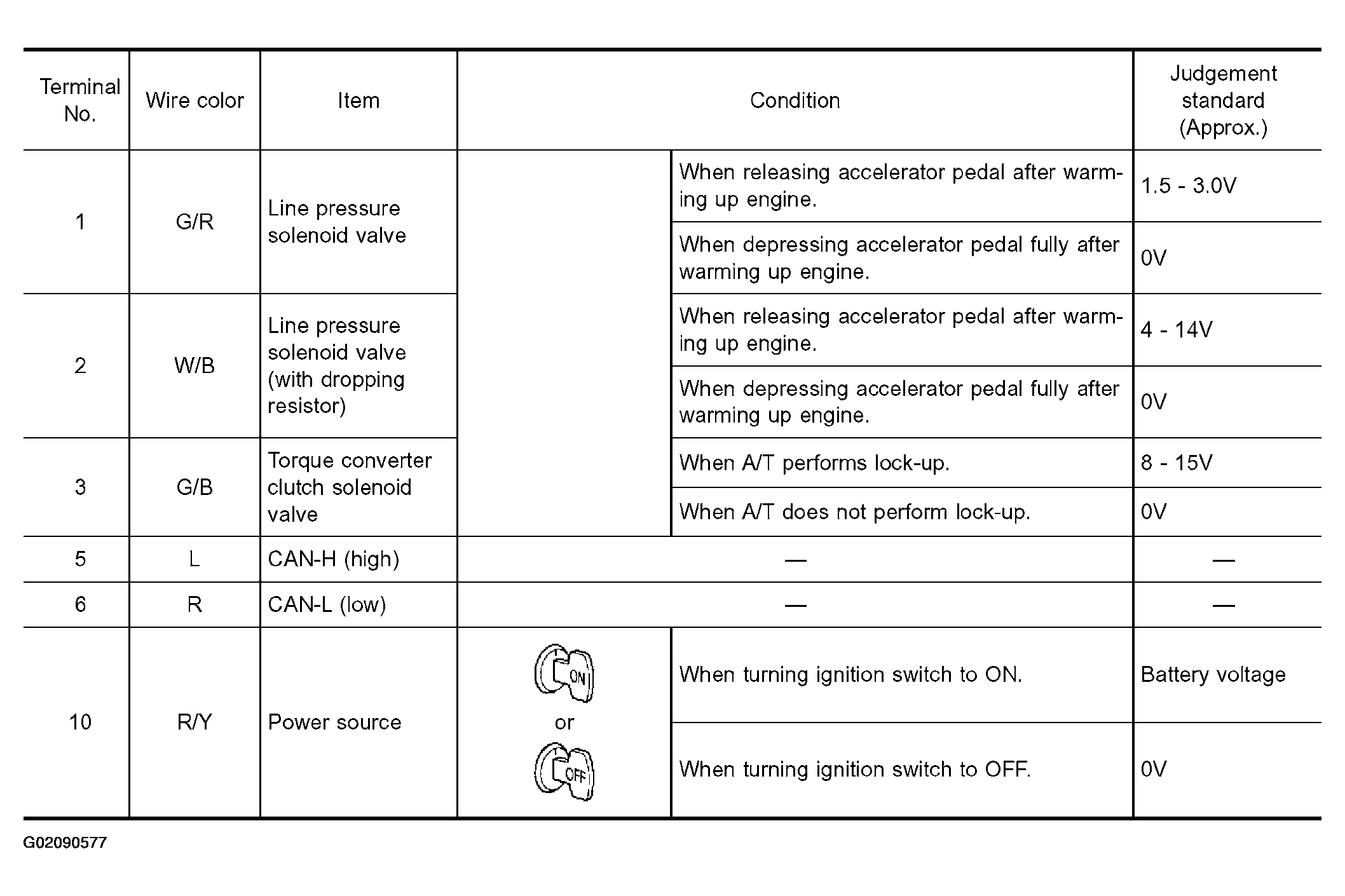

Fig 1: Identifying TCM Inspection Table (1 of 3)
G02090577Courtesy of NISSAN MOTOR CO., U.S.A.

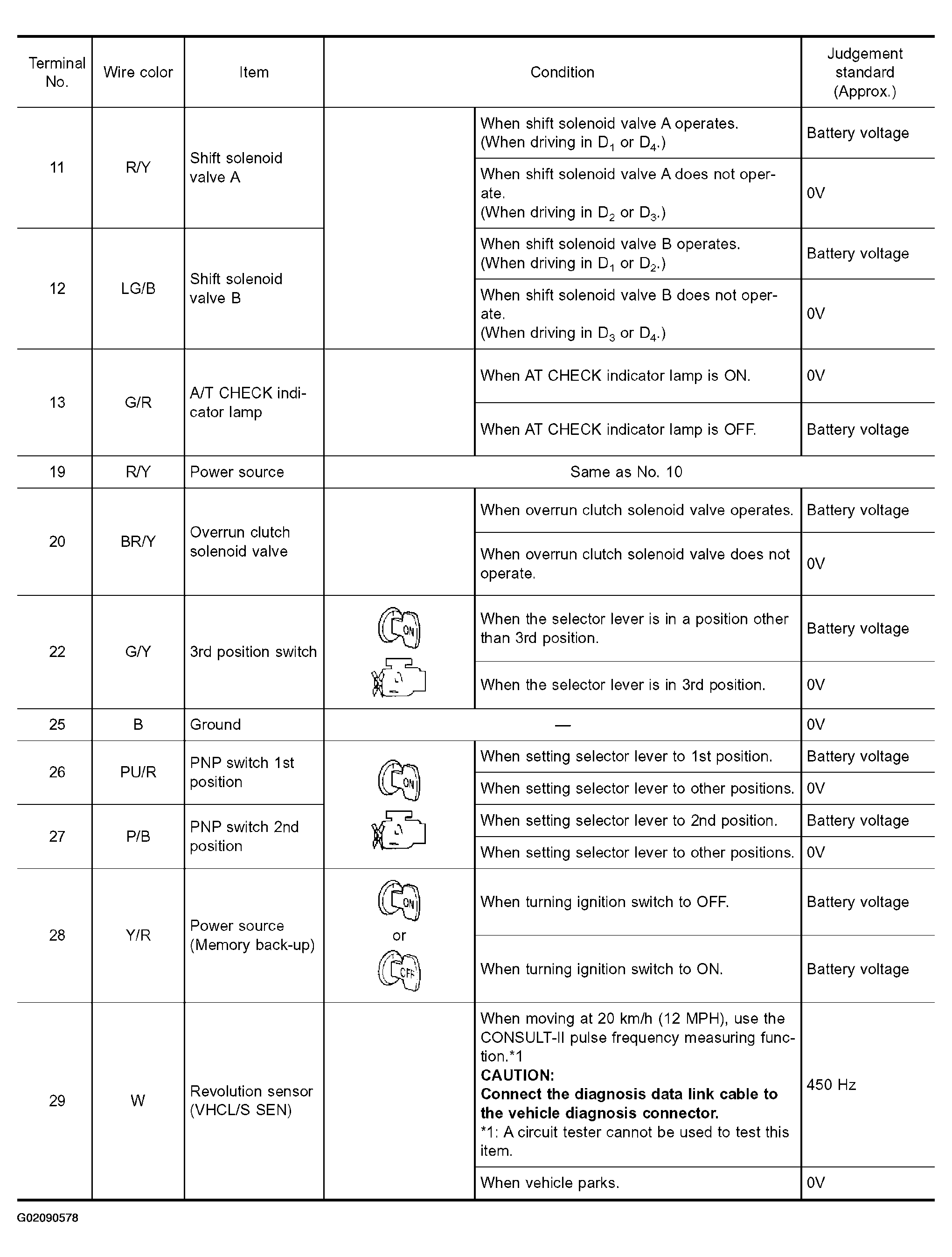

Fig 2: Identifying TCM Inspection Table (2 of 3)
G02090578Courtesy of NISSAN MOTOR CO., U.S.A.

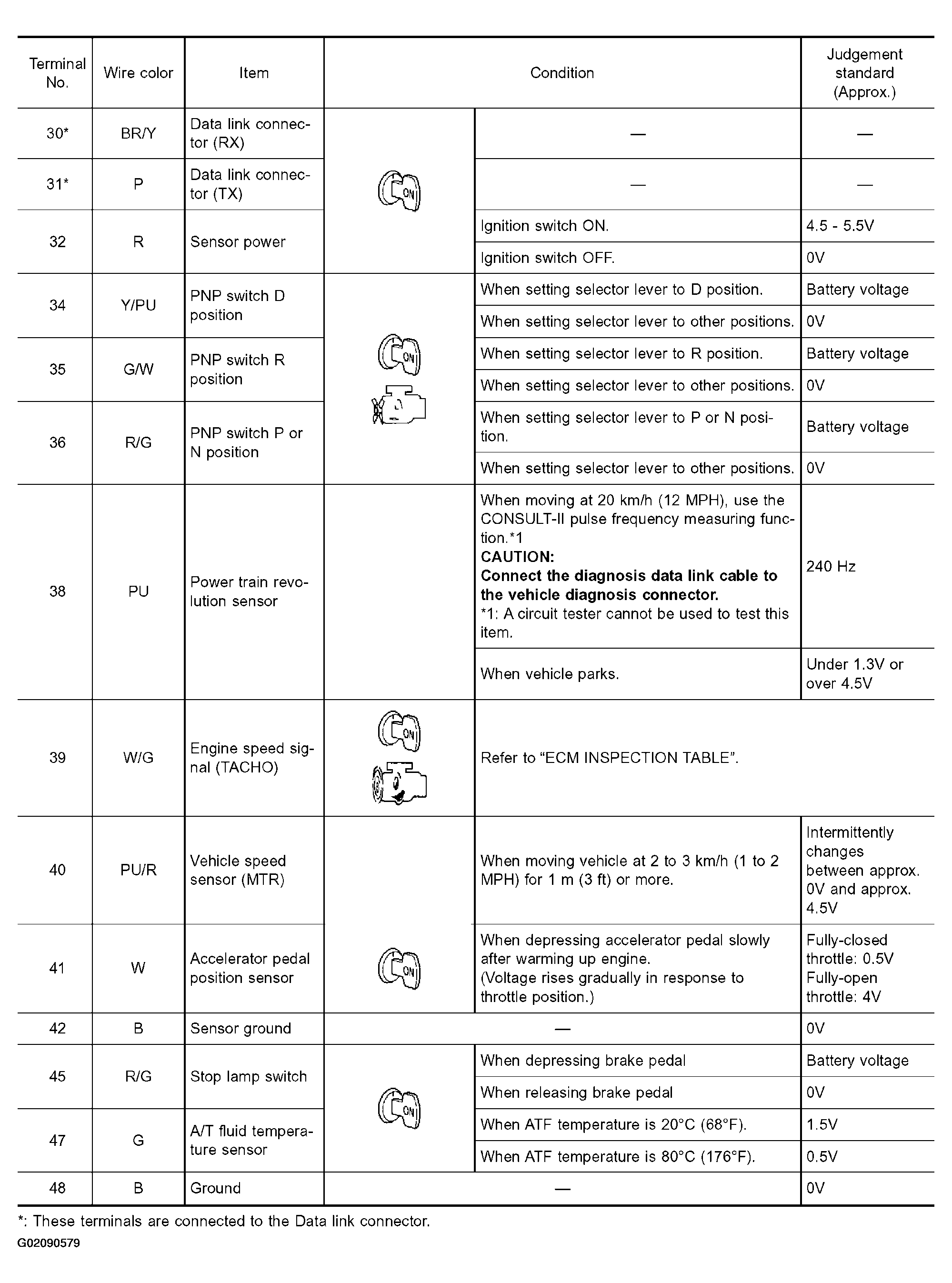

Fig 3: Identifying TCM Inspection Table (3 of 3)
G02090579Courtesy of NISSAN MOTOR CO., U.S.A.
