Vehicle Speed When Performing And Releasing Lock-Up

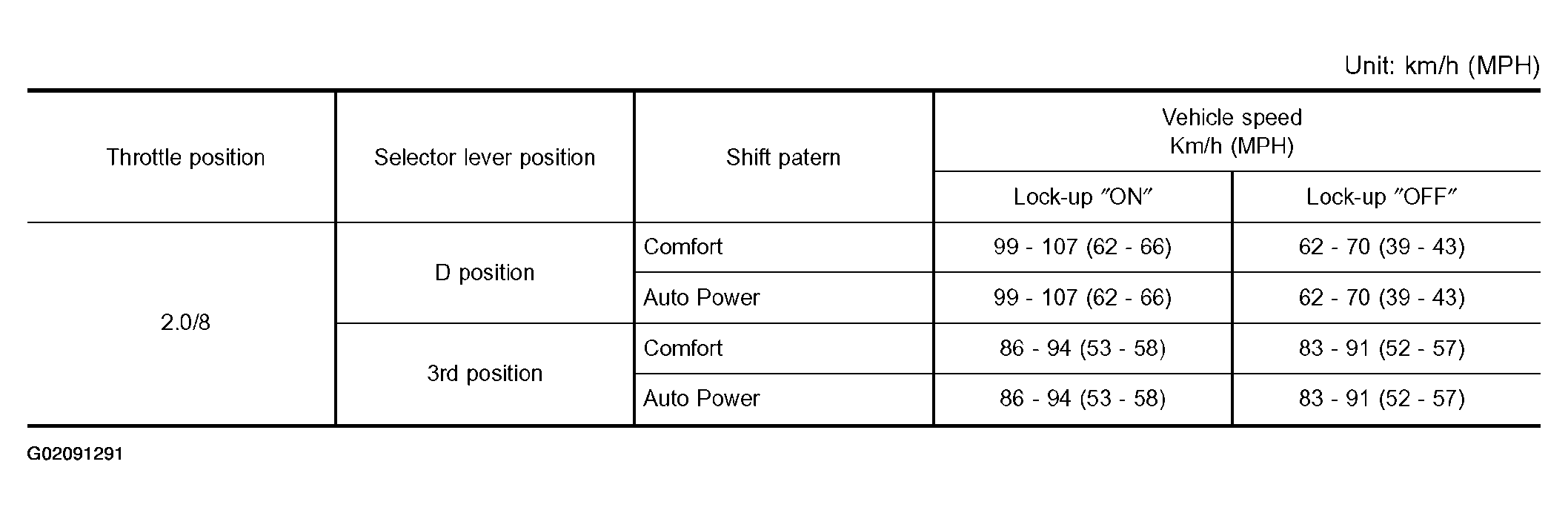

Fig 1: Throttle Position & Vehicle Speed Specifications (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

• Lock-up vehicle speed indicates the speed in D₄ position.
• Perform lock-up inspection after warming up engine.
• Lock-up vehicle speed may vary depending on the driving conditions and circumstances.
