DTC P1760: Overrun Clutch Solenoid Valve: Description: Notes

The overrun clutch solenoid valve is activated by the TCM in response to signals sent from the park/neutral position (PNP) switch, 3rd position switch, vehicle speed and accelerator pedal position sensor (throttle position sensors). The overrun clutch operation will then be controlled.

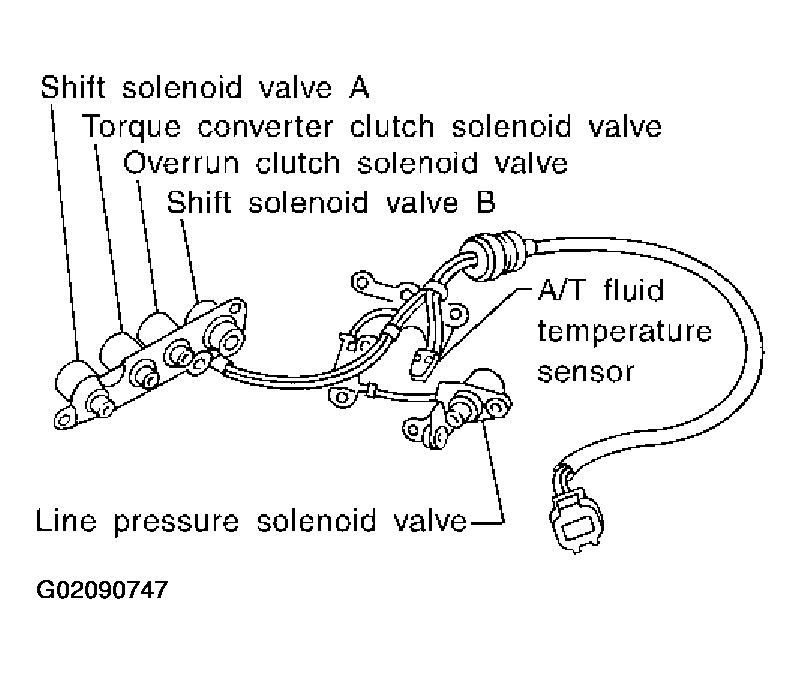

Fig 1: Identifying DTC P1760 Overrun Clutch Solenoid Valve System
G02090747Courtesy of NISSAN MOTOR CO., U.S.A.
