With CONSULT-II

Start engine and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

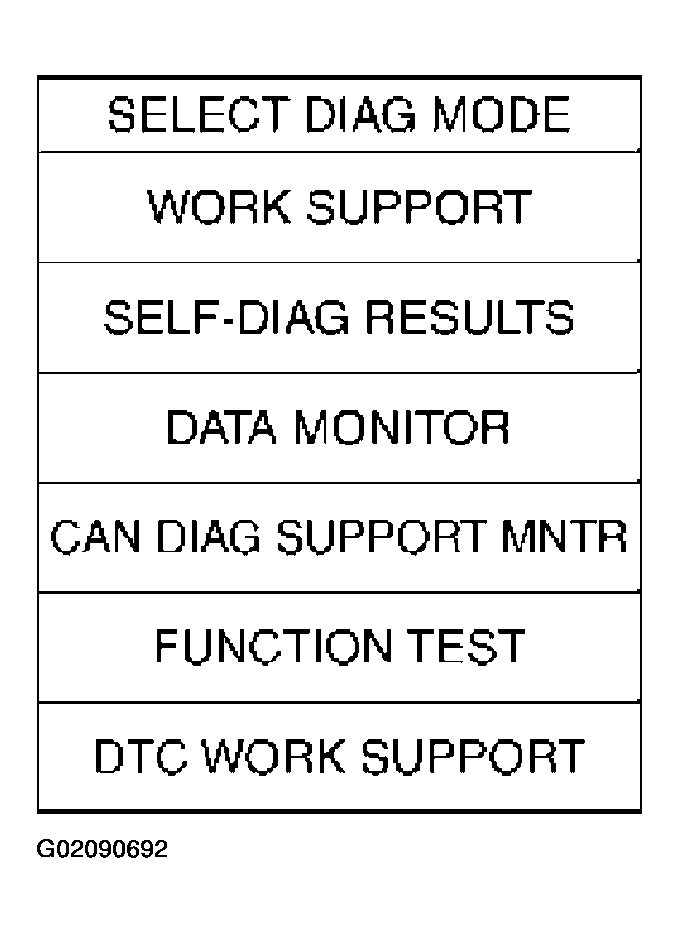

Fig 1: Display Select Diag Mode Sheet With Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that output voltage of A/T fluid temperature sensor is within the range below.
FLUID TEMP SEN: 0.4 - 1.5V

If out of range, drive vehicle to decrease voltage (warm up the fluid) or stop engine to increase voltage (cool down the fluid).
Select "TCC S/V FNCTN P0744" of "DTC WORK SUPPORT" mode for "A/T" with CONSULT-II and touch "START".
Accelerate vehicle to more than 80 km/h (50 MPH) and maintain the following condition continuously until "TESTING" has turned to "COMPLETE". (It will take approximately 30 seconds after "TESTING" shows.)

Fig 2: Identifying A/T Fluid Temperature Graph
Courtesy of NISSAN MOTOR CO., U.S.A.

THROTTLE POSI: 1.0/8 - 2.0/8 (at all times during step 4)

Selector lever: D position

TCC S/V DUTY: More than 94%

VHCL/S SE A/T: Constant speed of more than 80 km/h (50 MPH)
- Check that "GEAR" shows "4".
- For shift schedule, refer to SDS, SHIFT SCHEDULE .
- If "TESTING" does not appear on CONSULT-II for a long time, select "SELF- DIAG RESULTS". In case a 1st trip DTC other than P0744 is shown, refer to applicable "TROUBLE DIAGNOSIS FOR DTC".
If "NG" is displayed, refer to DIAGNOSTIC PROCEDURE . If "OK" is displayed, refer to SHIFT SCHEDULE .
