Home >> Infiniti >> 2003 >> I35 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Diagnostic Trouble Code Definitions >> DTC P0725: Engine Speed Signal >> Diagnostic Trouble Code (DTC) Confirmation Procedure >> With Consult-II

With Consult-II

  1. Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
  2. Start engine and maintain the following conditions for at least 10 consecutive seconds.

    VHCL SPEED SE: 10 km/h (6 MPH) or more

    THRTL POS SEN: More than 1.2V

    Selector lever: D position

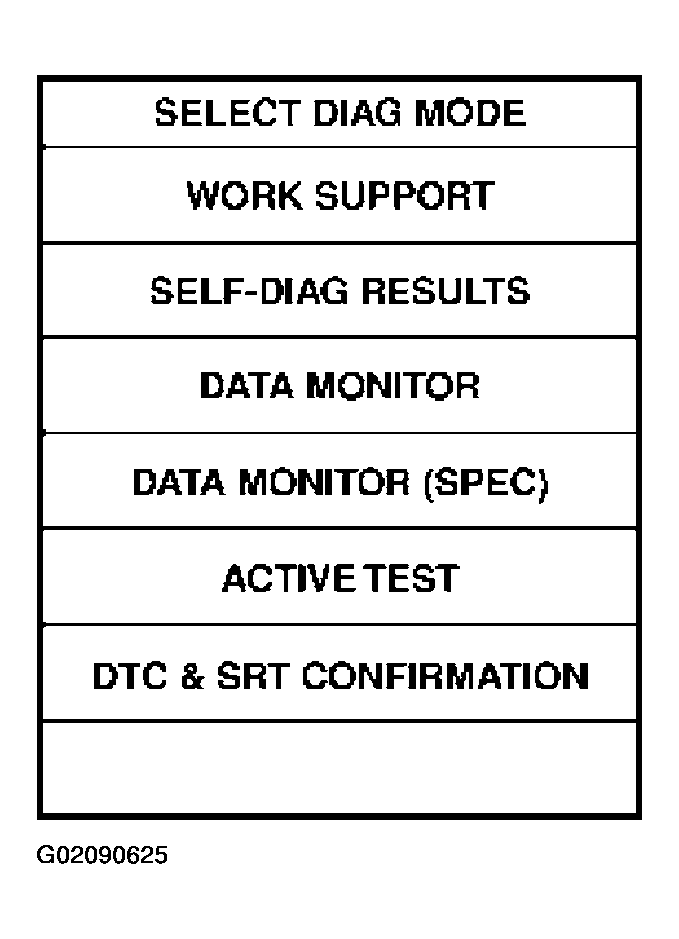

    Fig 1: Display Diagnostic Trouble Code (DTC) Confirmation Procedure Sheet
    G02090625Courtesy of NISSAN MOTOR CO., U.S.A.
