With CONSULT-II

Turn ignition switch ON and select "DATA MONITOR" mode for "A/T" with CONSULT-II.
Drive vehicle and check for an increase of "VHCL/S SE.MTR" value.
If the check result is NG, go to DIAGNOSTIC PROCEDURE .

If the check result is OK, go to following step.
Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.

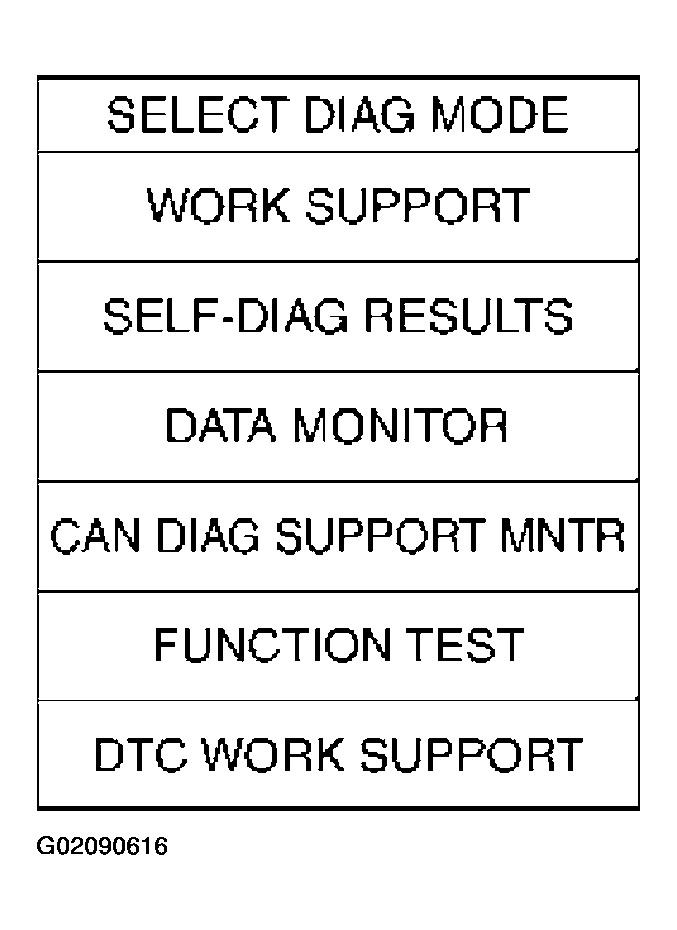

Fig 1: Display Select Diag Mode Sheet With Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL SPEED SE: 30 km/h (19 MPH) or more

THRTL POS SEN: More than 1.2V

Selector lever: D position

Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test.

If the check result is NG, go to DIAGNOSTIC PROCEDURE .

If the check result is OK, go to following step.

Fig 2: Display Diagnostic Trouble Code (DTC) Confirmation Procedures
Courtesy of NISSAN MOTOR CO., U.S.A.
Maintain the following conditions for at least 5 consecutive seconds.
CMPS.RPM (REF): 3,500 rpm or more

THRTL POS SEN: More than 1.2V

Selector lever: D position

Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test.

Fig 3: Display Select Diag Mode Sheet With Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.
