Without CONSULT-II

  1. Start engine.
  2. Drive vehicle under the following conditions:

    Selector lever in D, vehicle speed higher than 20 km/h (12 MPH).

  3. Perform self-diagnosis.

    Refer to "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) ".

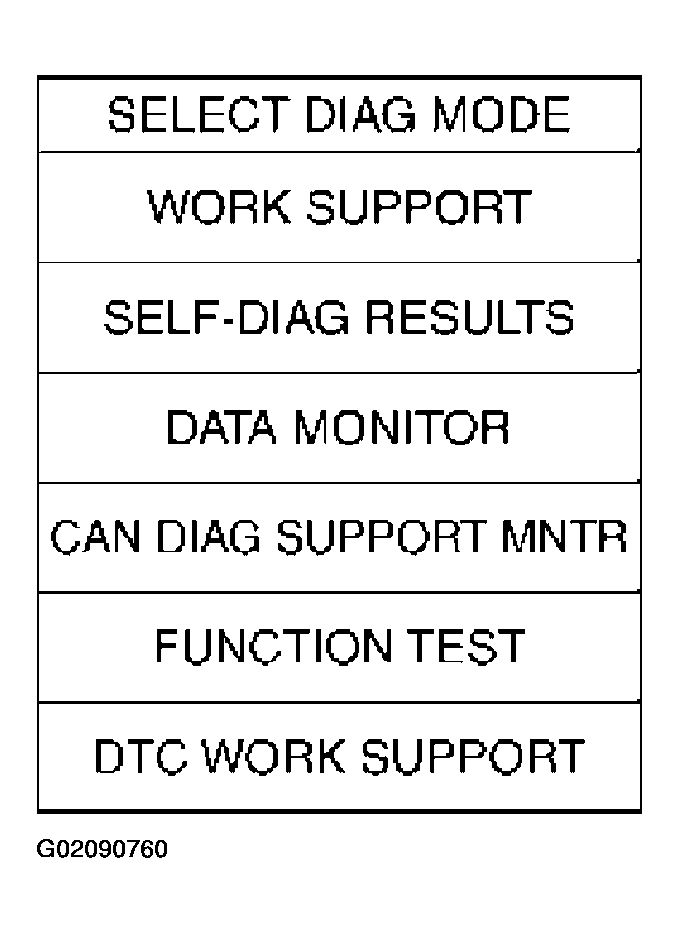

    Fig 1: Display Select Diag Mode Sheet With Consult-II
    G02090760Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 2: Identifying A/T Fluid Temp Sensor & TCM Power Source
    G02090761Courtesy of NISSAN MOTOR CO., U.S.A.
