Service Data And Specifications (SDS)
>>
Oil Pump
Oil Pump

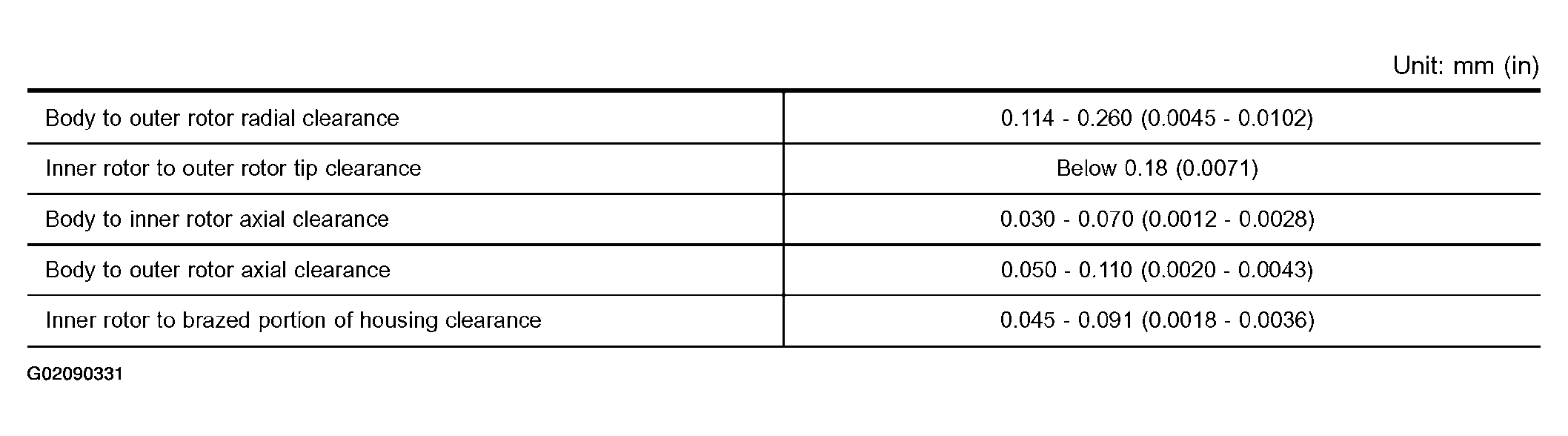

Fig 1: Oil Pump Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
