Consult-II Inspection Procedure

  1. Turn the ignition switch "OFF".
  2. Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

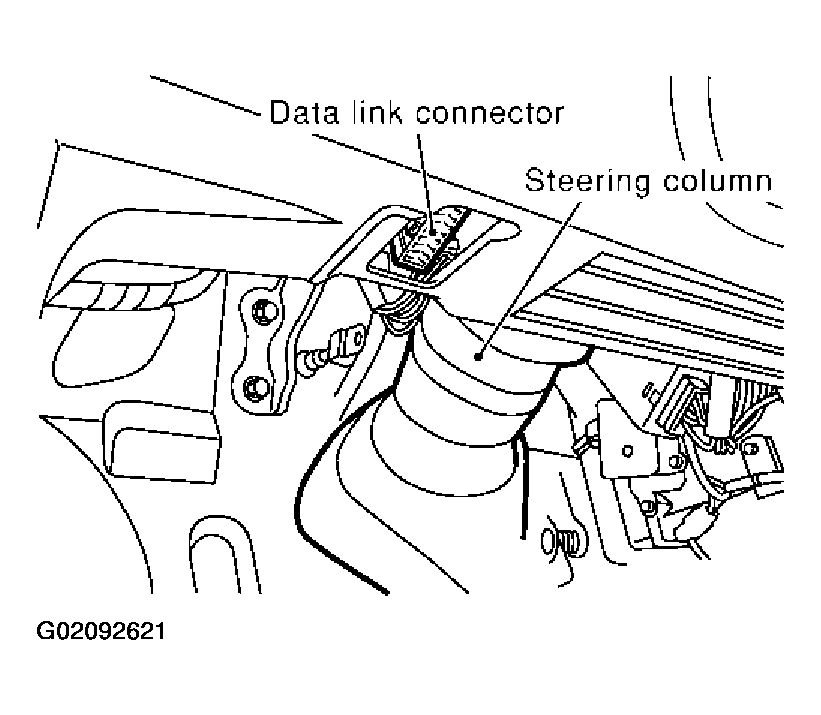

    Fig 1: Locating Data Link Connector
    G02092621Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: CONSULT-II Display-Touch "(START NISSAN BASED VHCL)"
    G02092622Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "SMART ENTRANCE".

    If "SMART ENTRANCE" is not indicated, go to .

    Fig 3: CONSULT-II Display-Touch "SMART ENTRANCE"
    G02092623Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Perform each diagnostic item according to "DIAGNOSTIC ITEMS APPLICATION". Refer to DIAGNOSTIC ITEMS APPLICATION  .
    Fig 4: CONSULT-II Display Select Test Item
    G02092624Courtesy of NISSAN MOTOR CO., U.S.A.
