Home >> Infiniti >> 2003 >> G35 2D Coupe, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls System - DTCS P1148 Through P2138 - Coupe >> DTC P2135: TP Sensor >> DTC Confirmation Procedure >> Testing Condition: >> With Consult-II

With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and let it idle for 1 second.
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

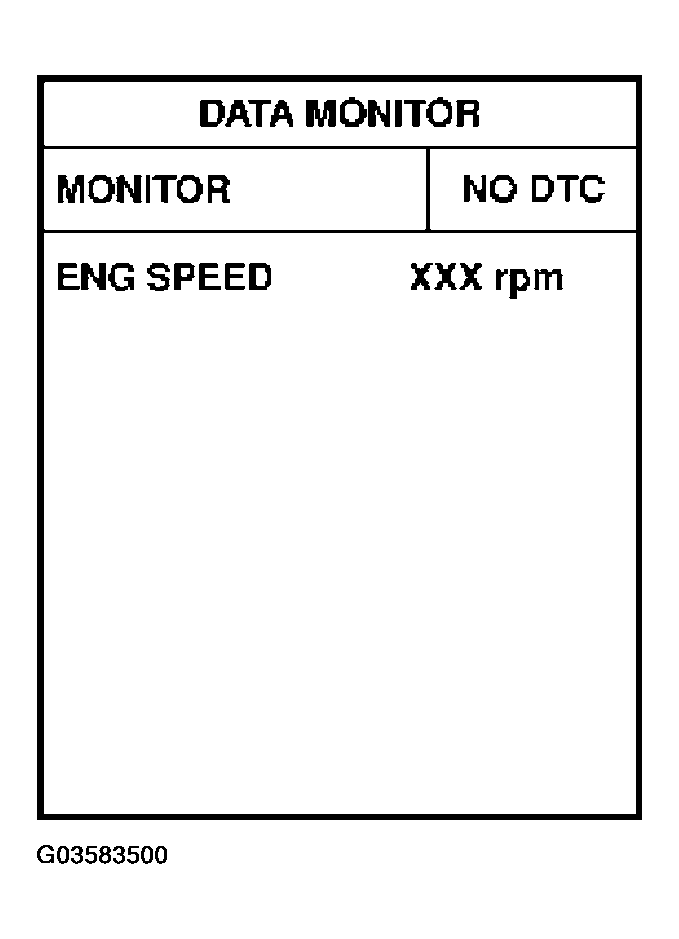

    Fig 1: Consult-II Data Monitor Display
    G03583500Courtesy of NISSAN MOTOR CO., U.S.A.
