With GST

  1. Turn ignition switch ON.
  2. Check voltage between ECM terminal 102 (PNP switch signal) and ground under the following conditions.
    PNP SWITCH VOLTAGE SIGNAL

    Condition (Gear position) Voltage V (Known good data)
    P and N position (A/T)
    Neutral position (M/T)    		 Approx. 0
    Except the above position BATTERY VOLTAGE (11 - 14V)
  3. If NG, go to "DIAGNOSTIC PROCEDURE ".

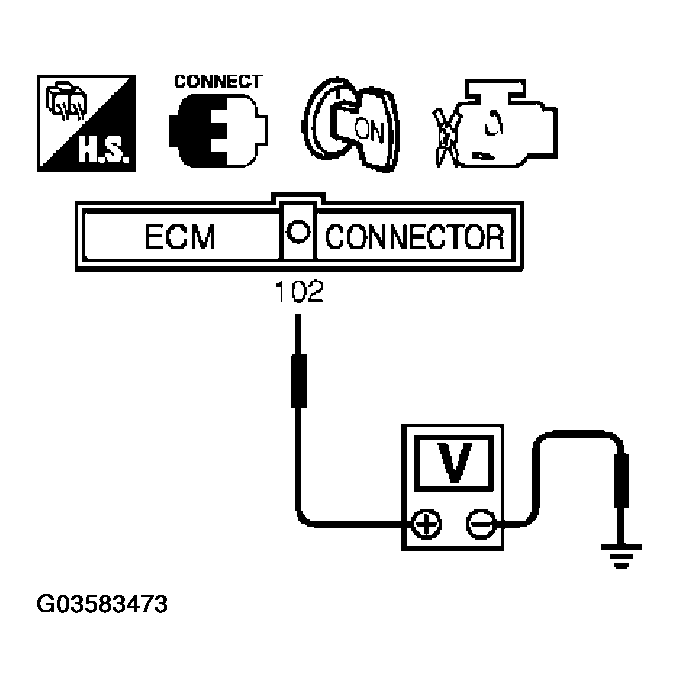

    Fig 1: Checking Voltage Between ECM Terminal 102 And Ground
    G03583473Courtesy of NISSAN MOTOR CO., U.S.A.
