Throttle Control Motor

  1. Disconnect electric throttle control actuator harness connector.
  2. Check resistance between terminals 3 and 6.

    Resistance: Approximately 1 -- 15 Ω [at 25 °C (77°F)]

  3. If NG, replace electric throttle control actuator and go to next step.
  4. Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
  5. Perform "IDLE AIR VOLUME LEARNING ".

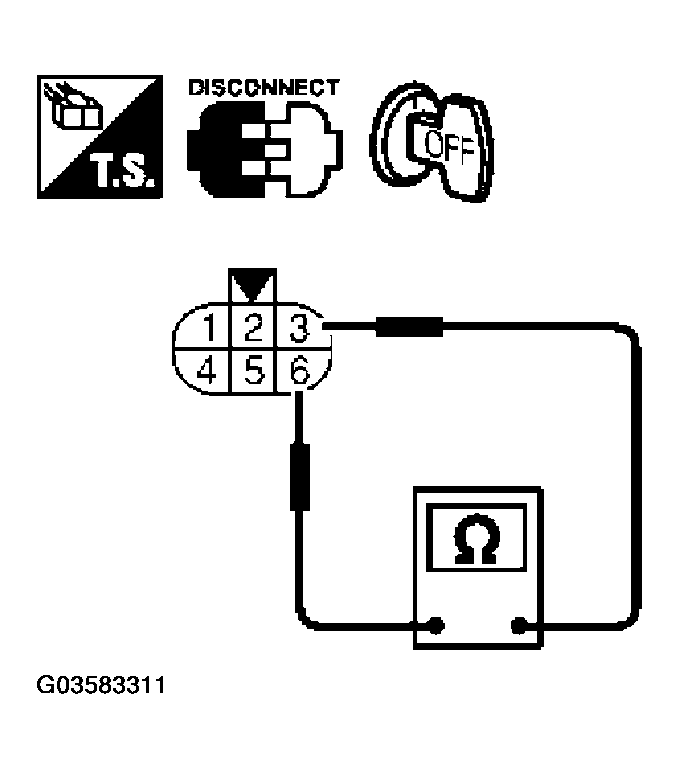

    Fig 1: Checking Resistance Between Throttle Control Motor Terminals 3 And 6
    G03583311Courtesy of NISSAN MOTOR CO., U.S.A.
