Home >> Infiniti >> 2003 >> G35 2D Coupe, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls System - DTCS P0460 Through P1167 - Coupe >> DTC P0507: ISC System >> DTC Confirmation Procedure >> With Consult-II

With Consult-II

  1. Open engine hood.
  2. Start engine and warm it up to normal operating temperature.
  3. Turn ignition switch OFF and wait at least 10 seconds.
  4. Turn ignition switch ON again and select "DATA MONITOR" mode with CONSULT-II.
  5. Start engine and run it for at least 1 minute at idle speed.
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

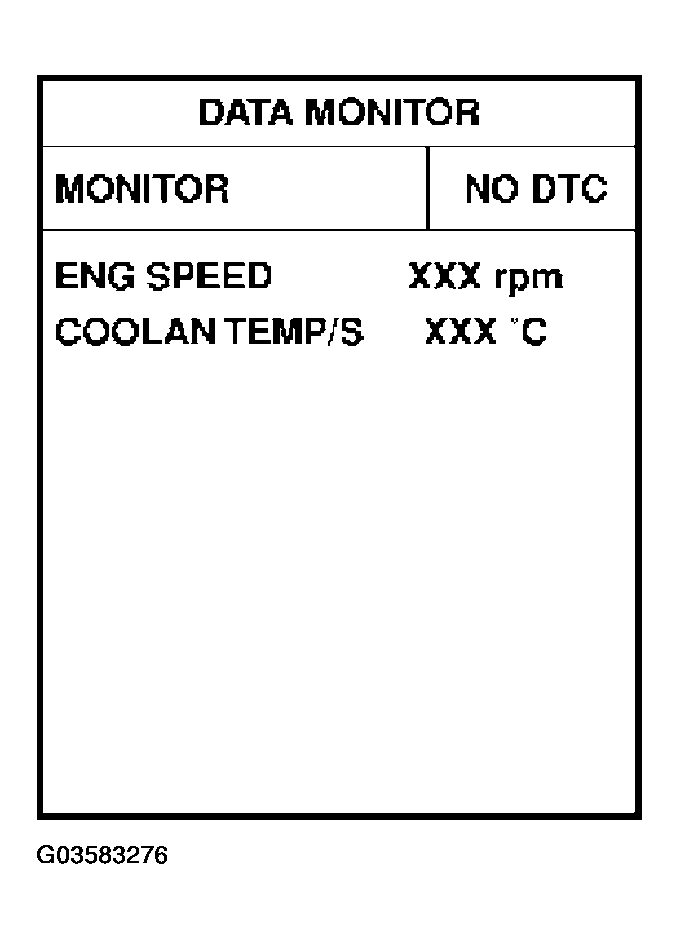

    Fig 1: Consult-II Data Monitor Display
    G03583276Courtesy of NISSAN MOTOR CO., U.S.A.
