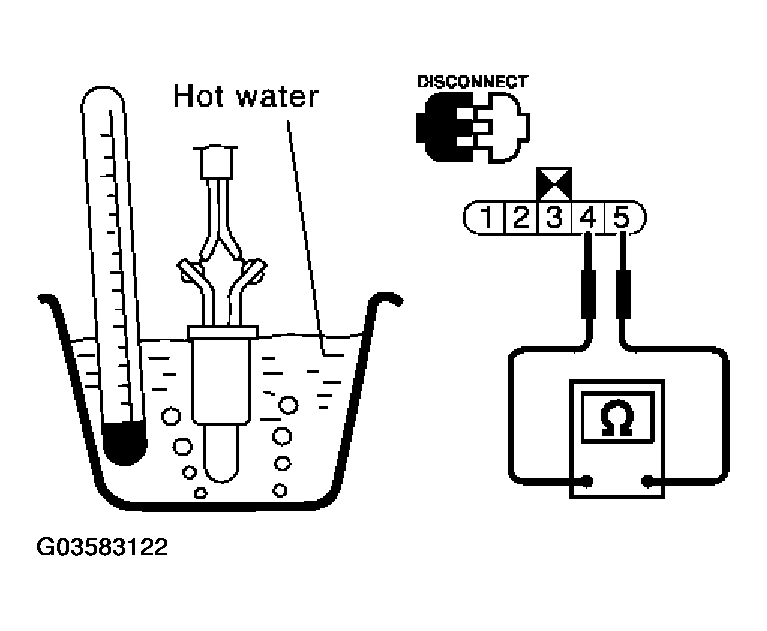

Check resistance between "fuel level sensor unit and fuel pump" terminals 4 and 5 by heating with hot water or heat gun as shown in illustration.
Courtesy of NISSAN MOTOR CO., U.S.A. TEMPERATURE/RESISTANCE SPECIFICATIONS
| Temperature °C (°F) |
Resistance kΩ |
| 20 (68) |
2.3 - 2.7 |
| 50 (122) |
0.79 - 0.90 |
