How To Change The Display For ODO/TRIP Meter

WARNING: This page is about a different car, the 2003 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

The vehicle speed signal and the memory signals from the meter memory circuit are processed by the combination meter and the mileage is displayed.
Switch modes with following procedure.

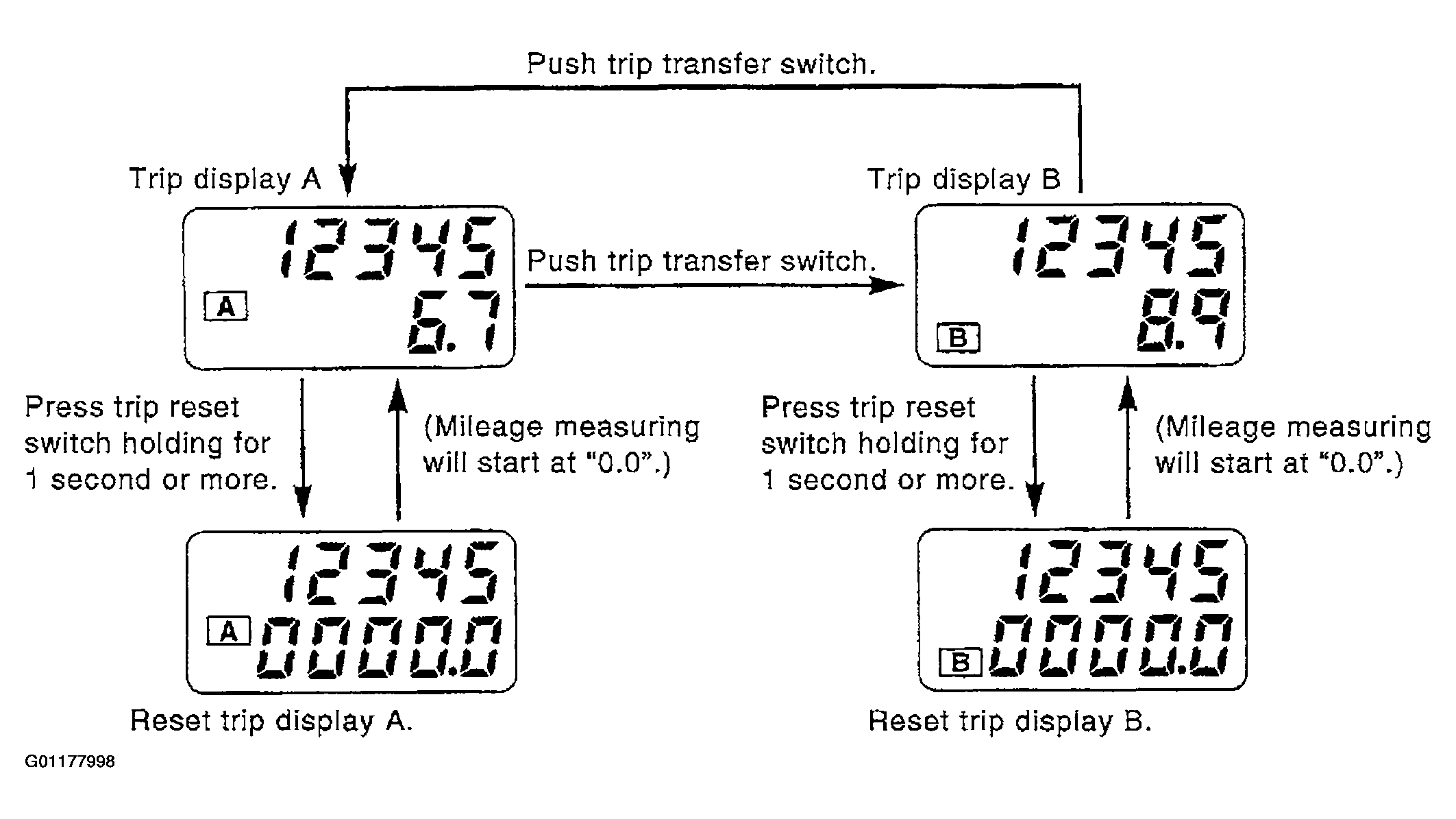

Fig 1: Changing Display For ODO/TRIP Meter
Courtesy of NISSAN MOTOR CO., U.S.A.
When trip transfer switch is pressed, trip meter display changes.
If trip reset switch is pressed for 1 second or more while trip A is displayed, only trip A is reset. (Same with trip B.)
If the battery is disconnected, odometer mileage will be retained but the trip meter is reset to 0.0.

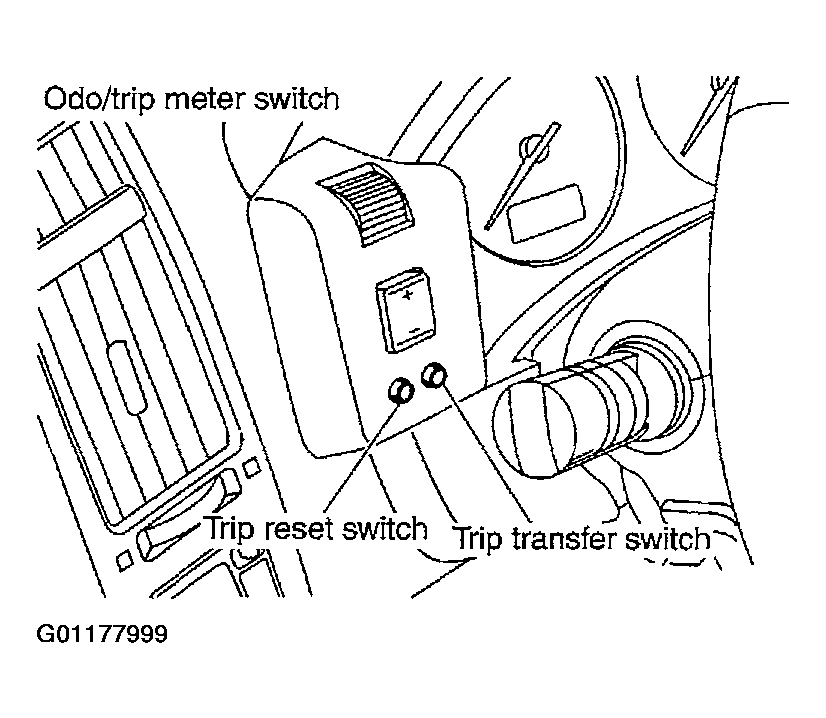

Fig 2: Identifying ODO/TRIP Meter Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
