Terminals and Reference Value for INTELLIGENT KEY UNIT

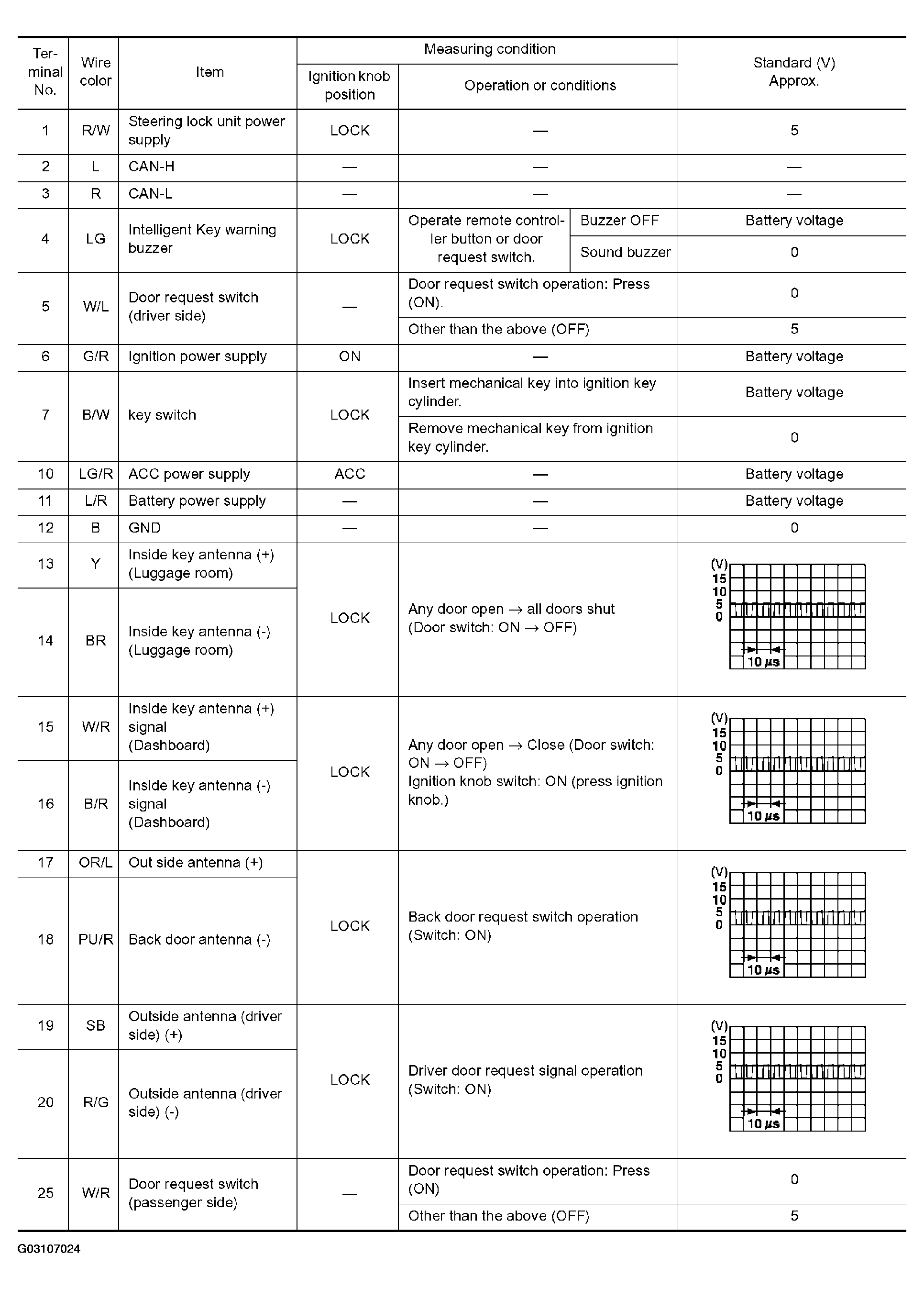

Fig 1: Intelligent Key Unit Terminals And Reference Value (1 Of 2)
G03107024Courtesy of NISSAN MOTOR CO., U.S.A.

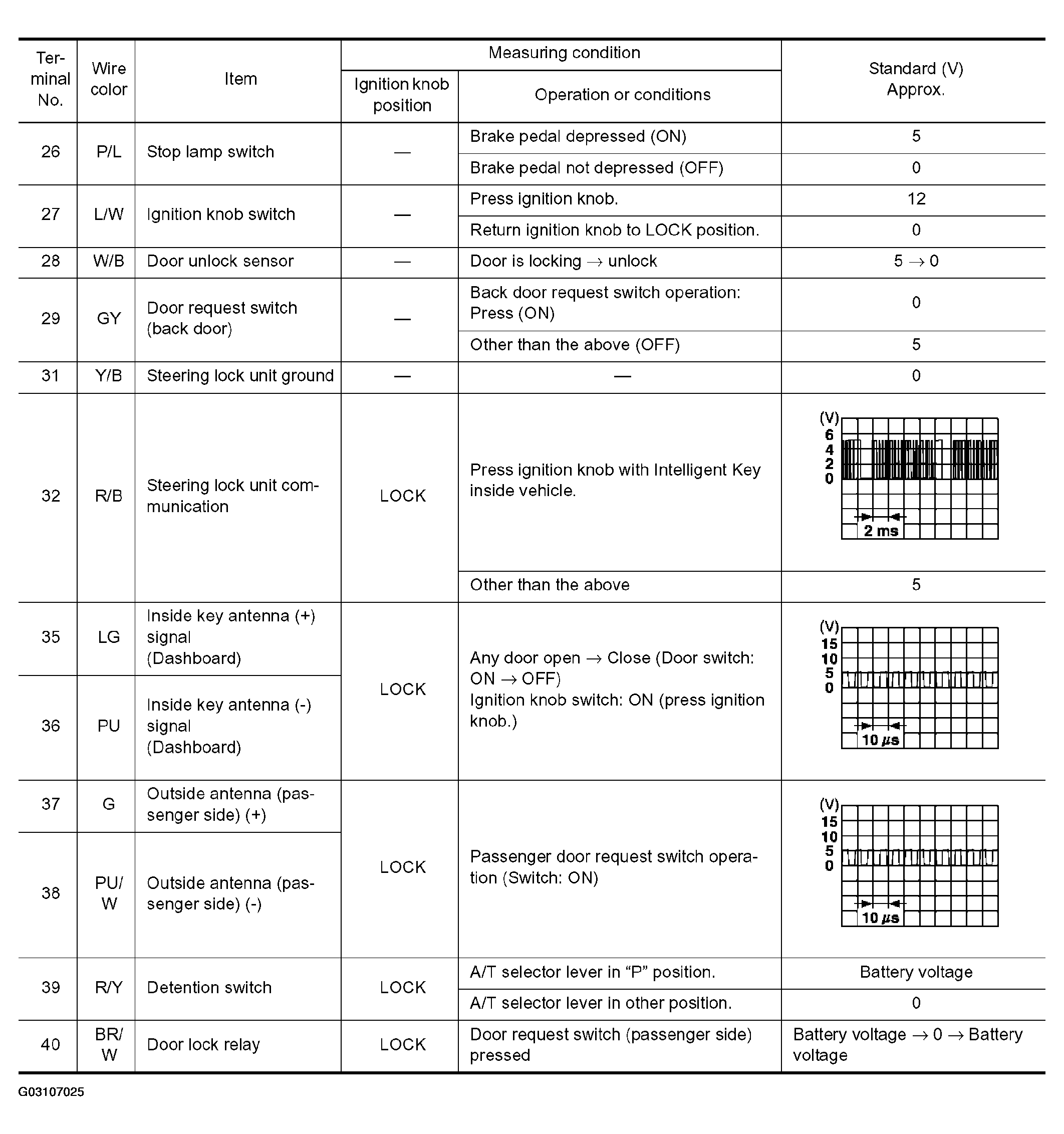

Fig 2: Intelligent Key Unit Terminals And Reference Value (2 Of 2)
G03107025Courtesy of NISSAN MOTOR CO., U.S.A.
