DTC P1572: ICC Brake Switch
>>
Component Inspection
Component Inspection
For ICC brake switch testing, see
Fig 1
.

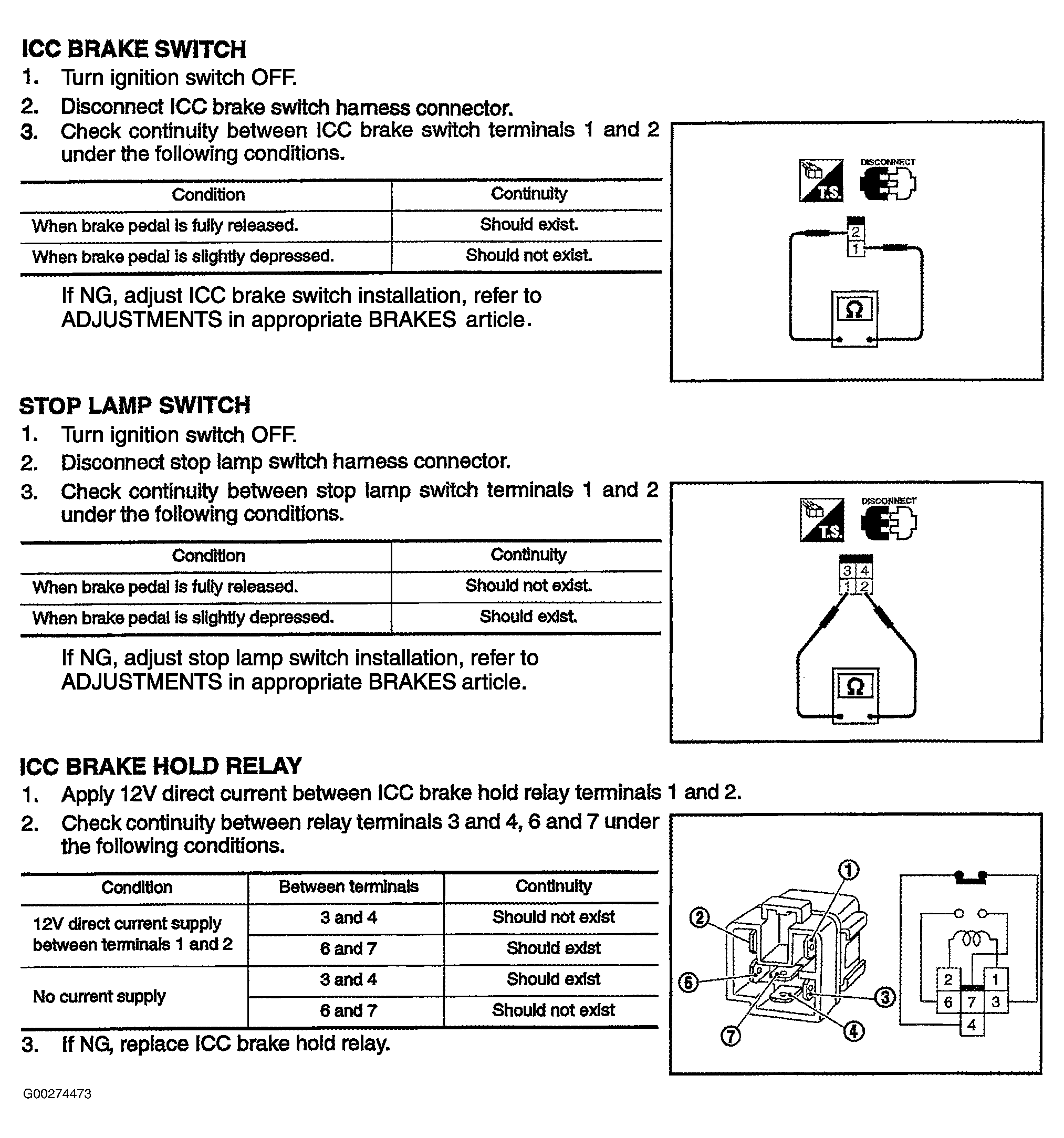

Fig 1: Testing ICC Brake Switch, Stop Lamp Switch & ICC Brake Hold Relay
Courtesy of NISSAN MOTOR CO., U.S.A.
