DTC P1572: ASCD Brake Switch
>>
Component Inspection
Component Inspection
For ASCD brake switch and stop lamp switch testing, see
Fig 1
.

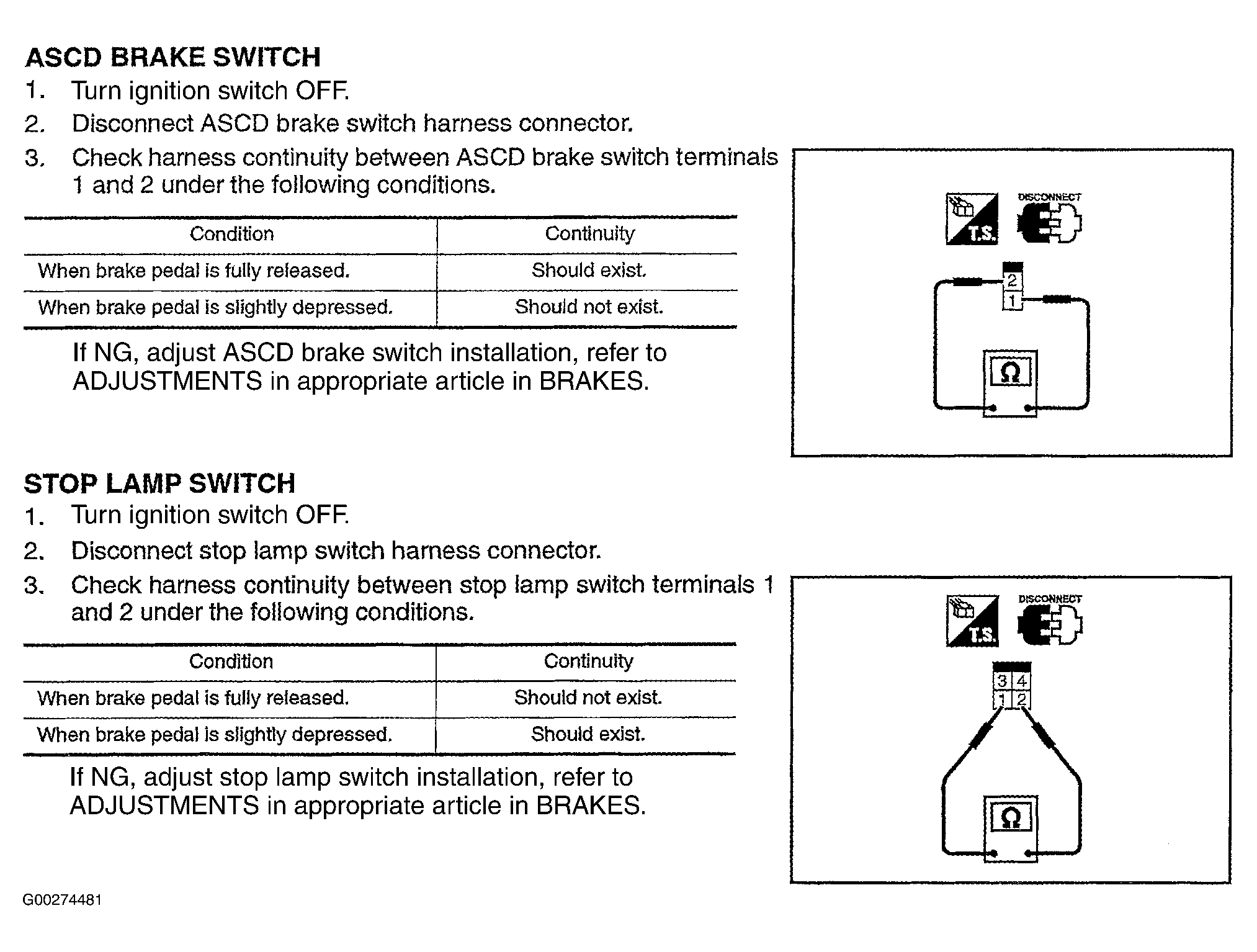

Fig 1: Testing ASCD : Brake & Stop Lamp Switches
Courtesy of NISSAN MOTOR CO., U.S.A.
