Component Inspection

For cooling fan motor testing, see Fig 1.

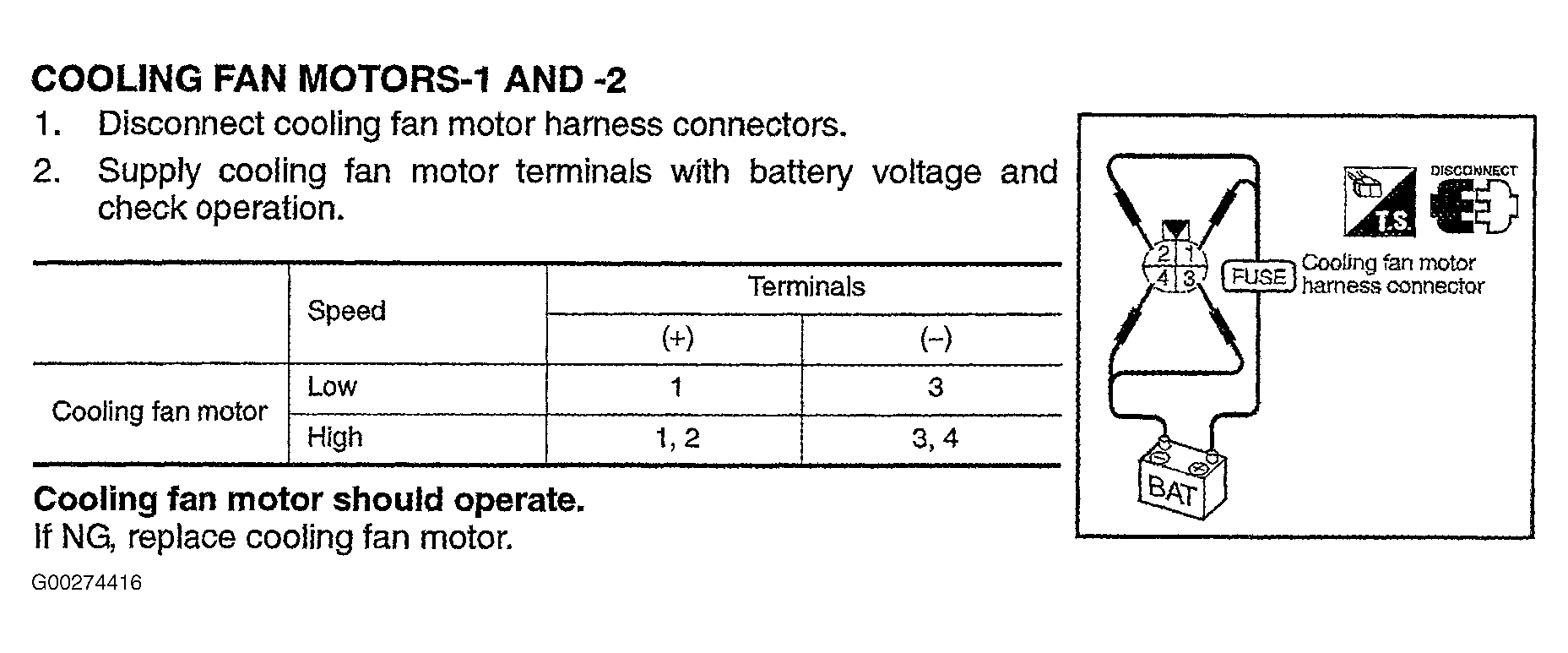

Fig 1: Testing Cooling Fan Motors 1 & 2

G00274416

Courtesy of NISSAN MOTOR CO., U.S.A.
