Diagnostic Procedure

For DTC P1128 diagnostic procedure, related circuit diagrams and connector identification, see Fig 1-Fig 3 .

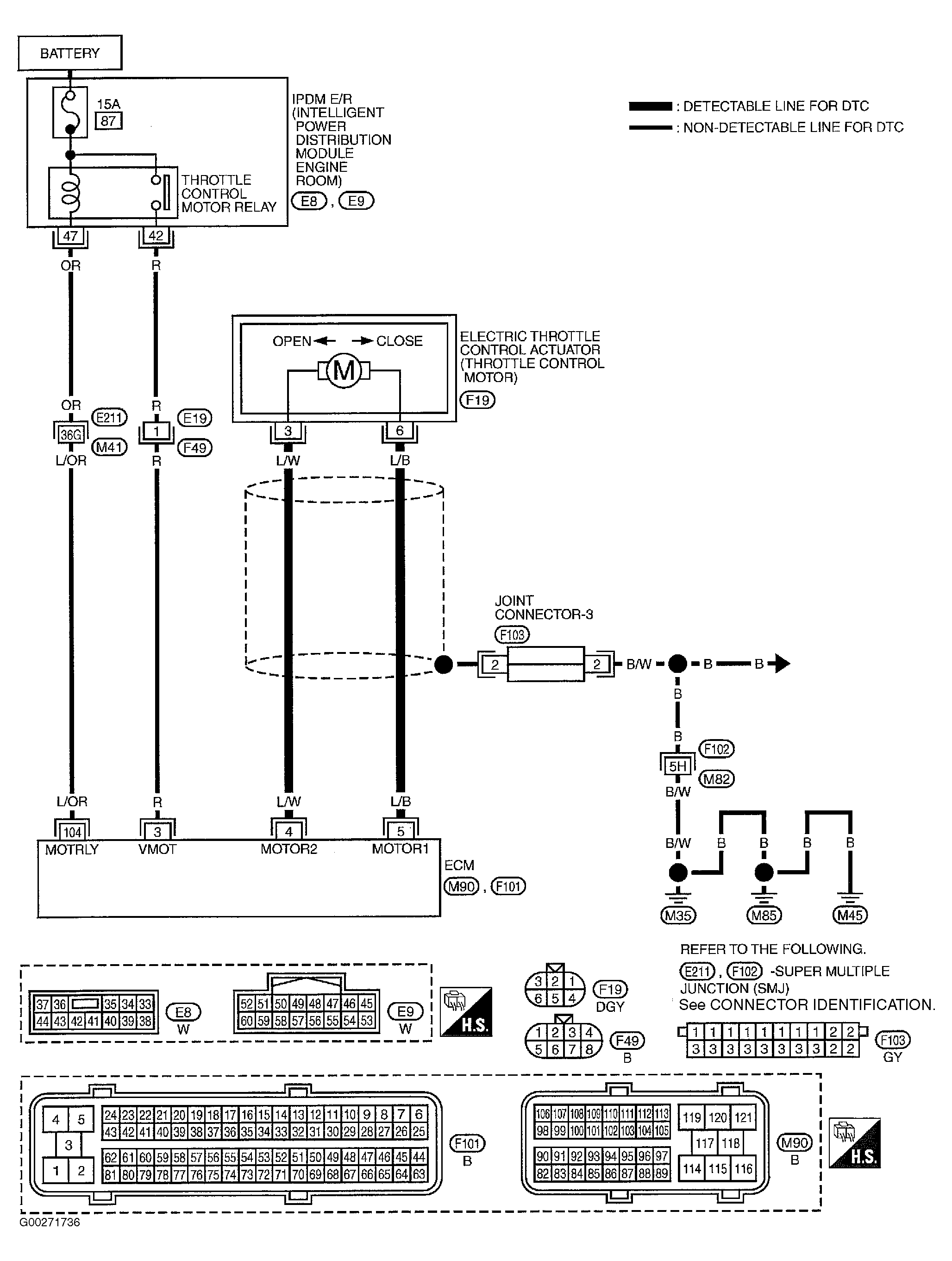

Fig 1: Identifying Throttle Control Motor Related Circuits & Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

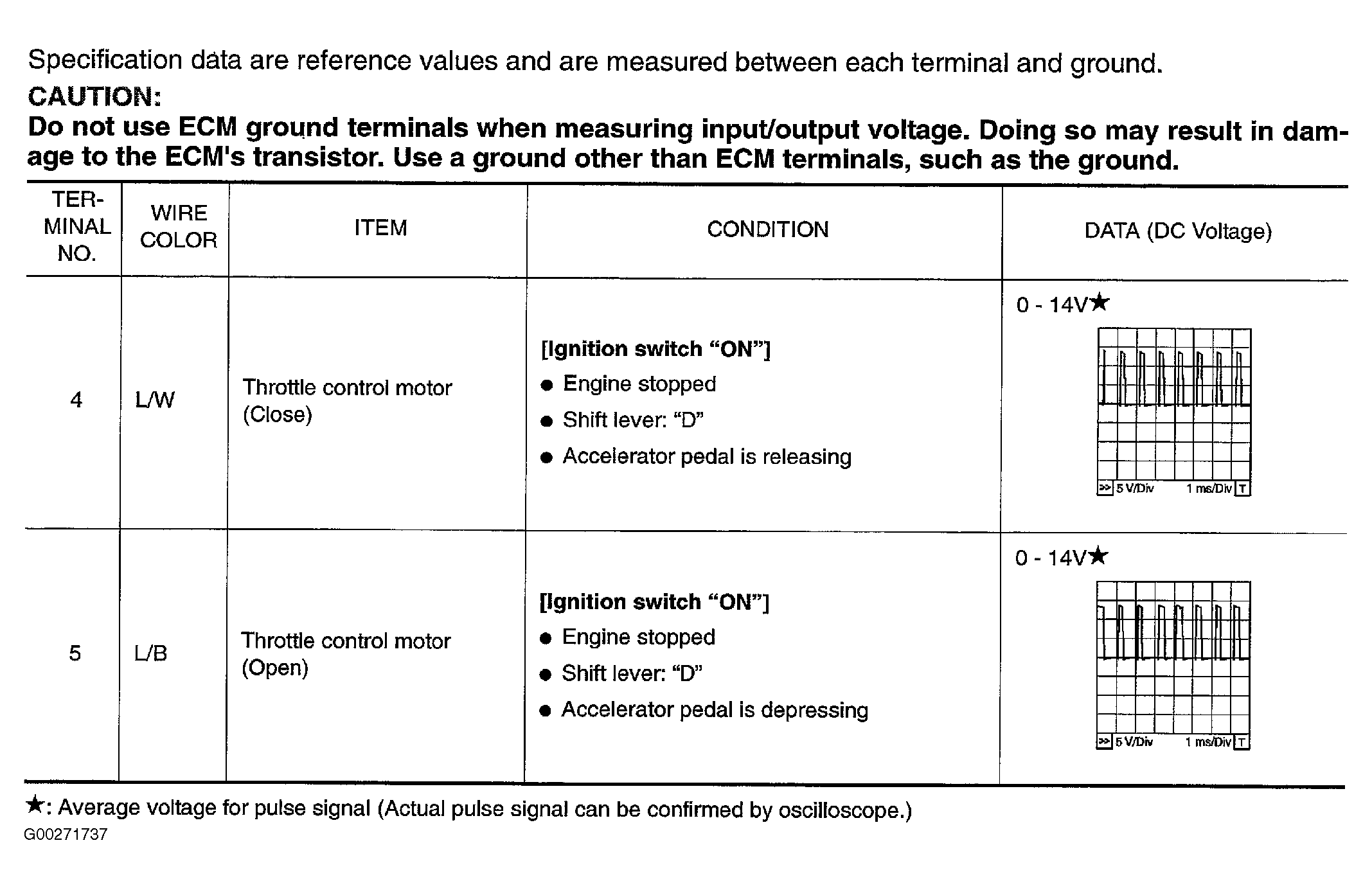

Fig 2: Identifying Throttle Control Motor Circuit Specification Data

Courtesy of NISSAN MOTOR CO., U.S.A.

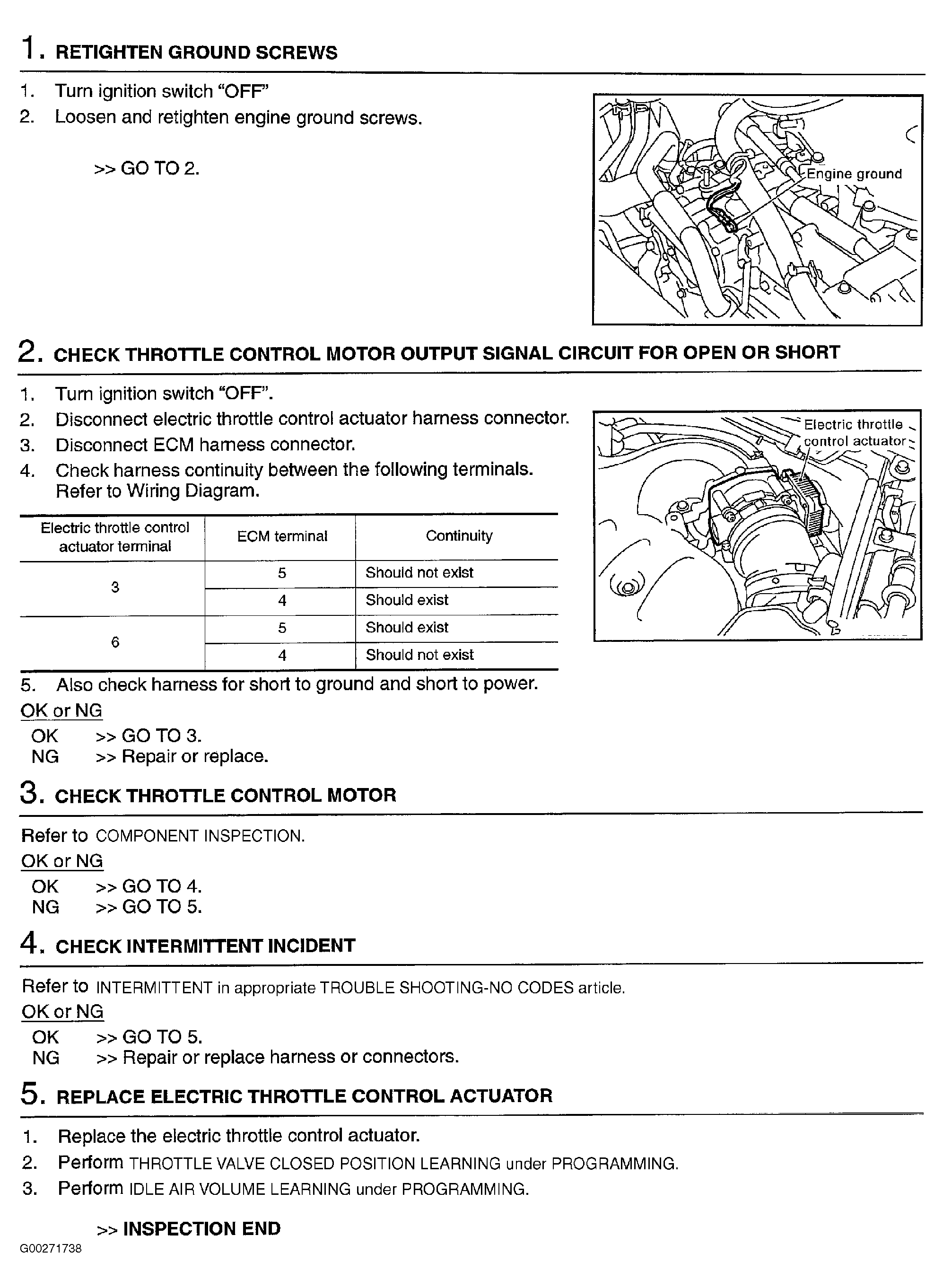

Fig 3: DTC P1128 Diagnostic Procedure

Courtesy of NISSAN MOTOR CO., U.S.A.
