On-Board Diagnosis Logic

This diagnosis detects a very large leak (fuel filler cap fell off, etc.) in EVAP system between fuel tank and EVAP canister purge volume control solenoid valve. See Fig 1.

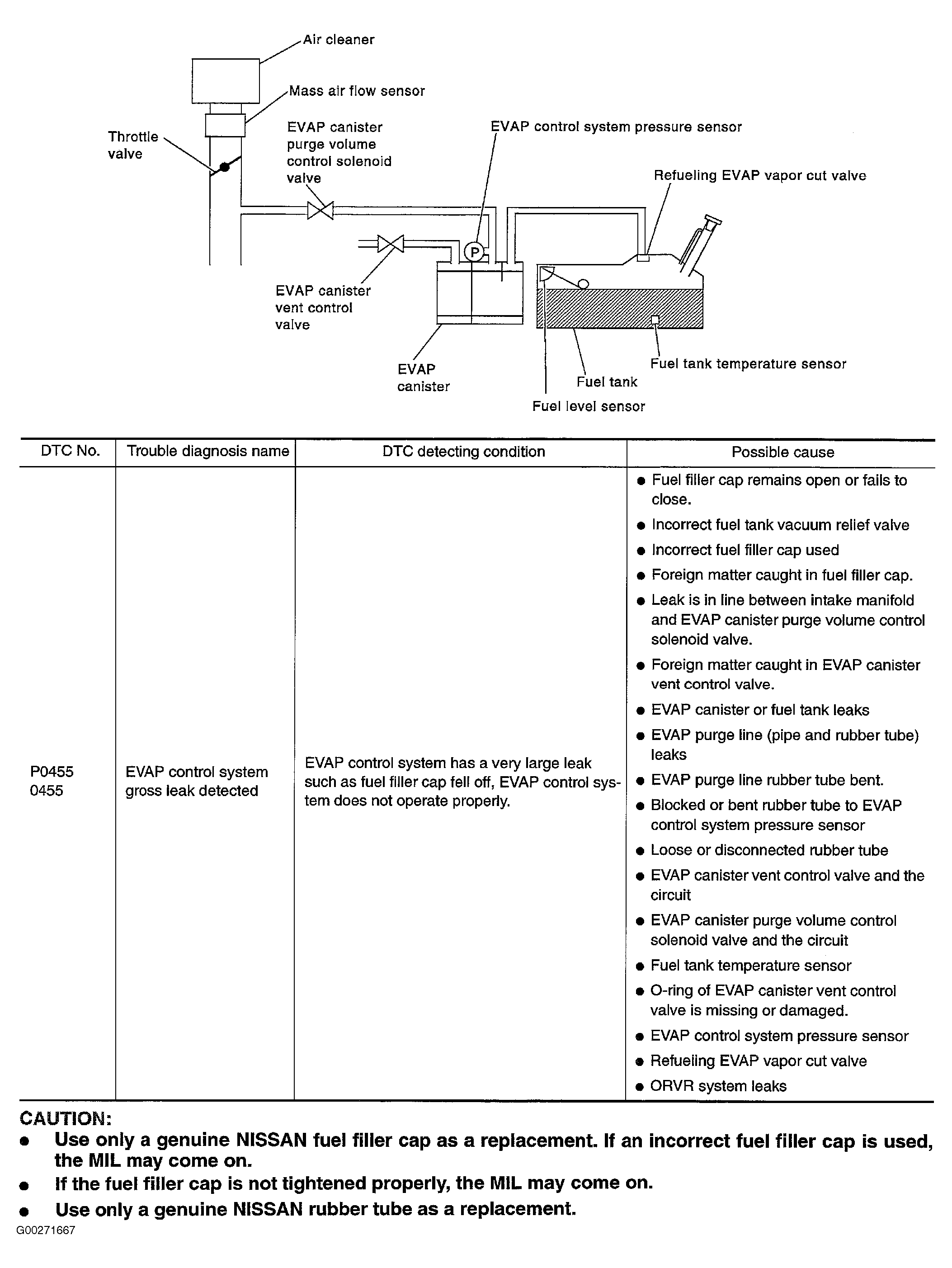

Fig 1: DTC P0455 On-Board Diagnosis Logic

Courtesy of NISSAN MOTOR CO., U.S.A.
