Diagnostic Procedure

For DTC P0101 diagnostic procedure, related circuits and connectors, see Fig 1-Fig 4 .

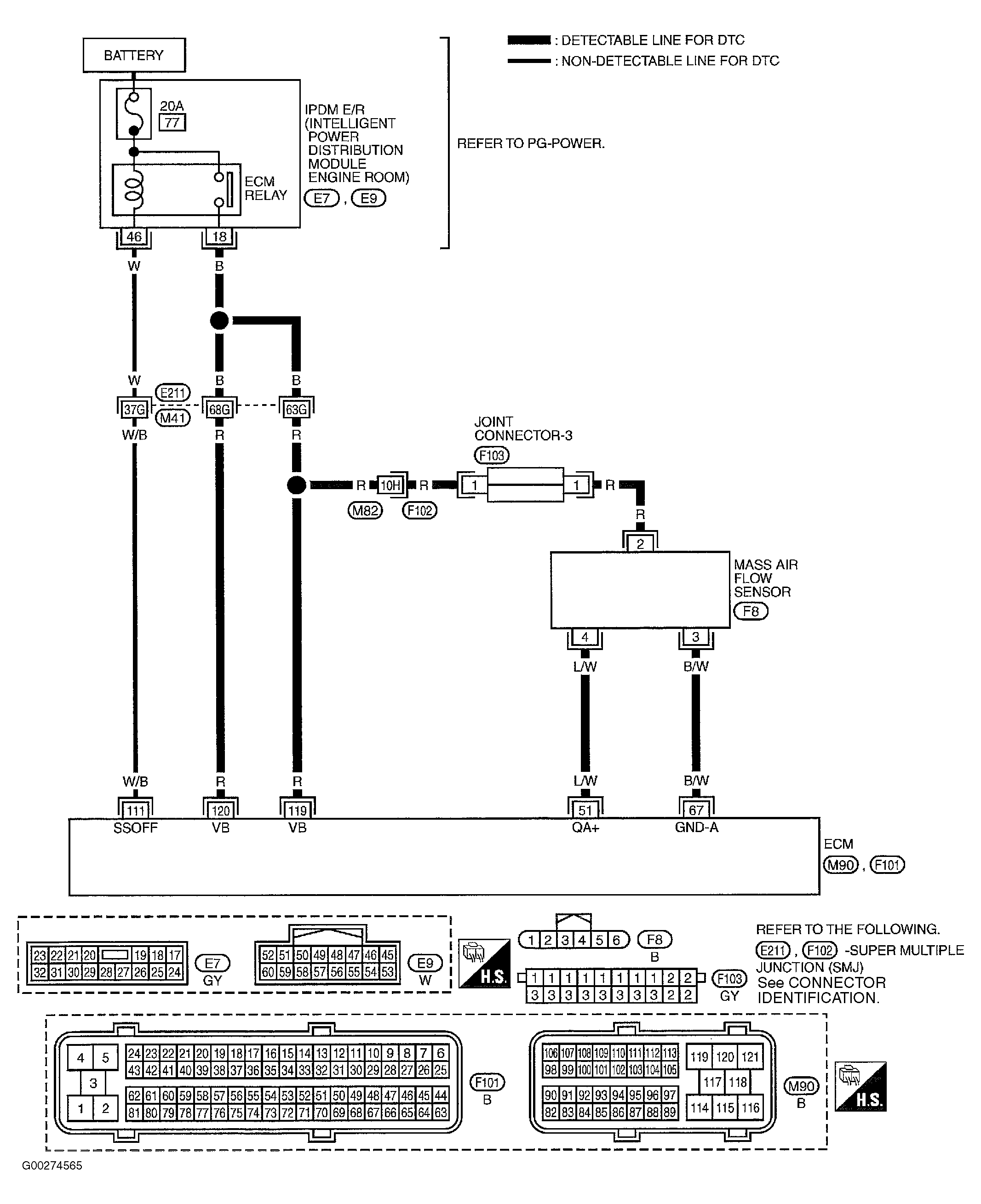

Fig 1: Identifying MAF Sensor Related Circuits & Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

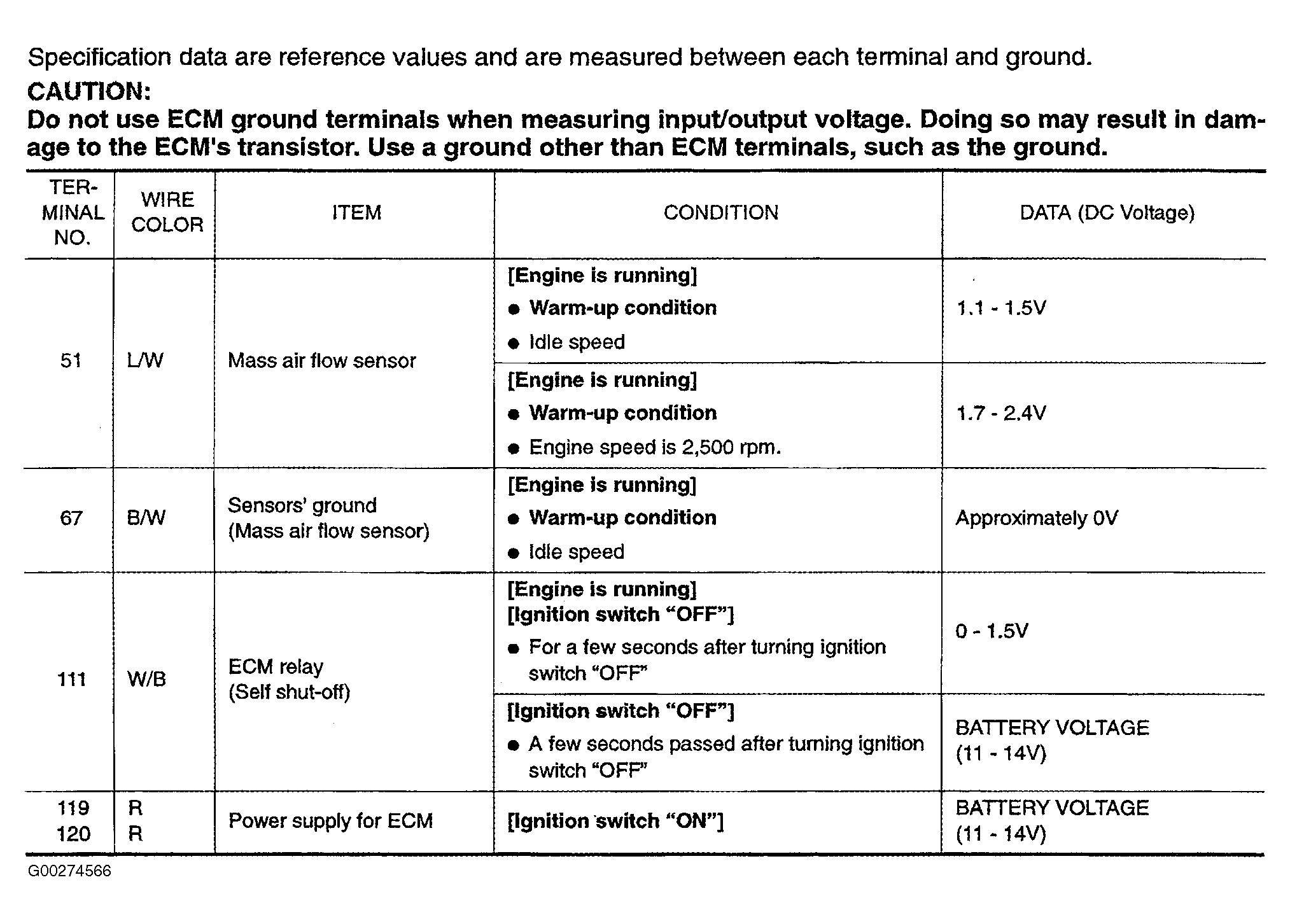

Fig 2: Identifying MAF Sensor Circuit Specification Data

Courtesy of NISSAN MOTOR CO., U.S.A.

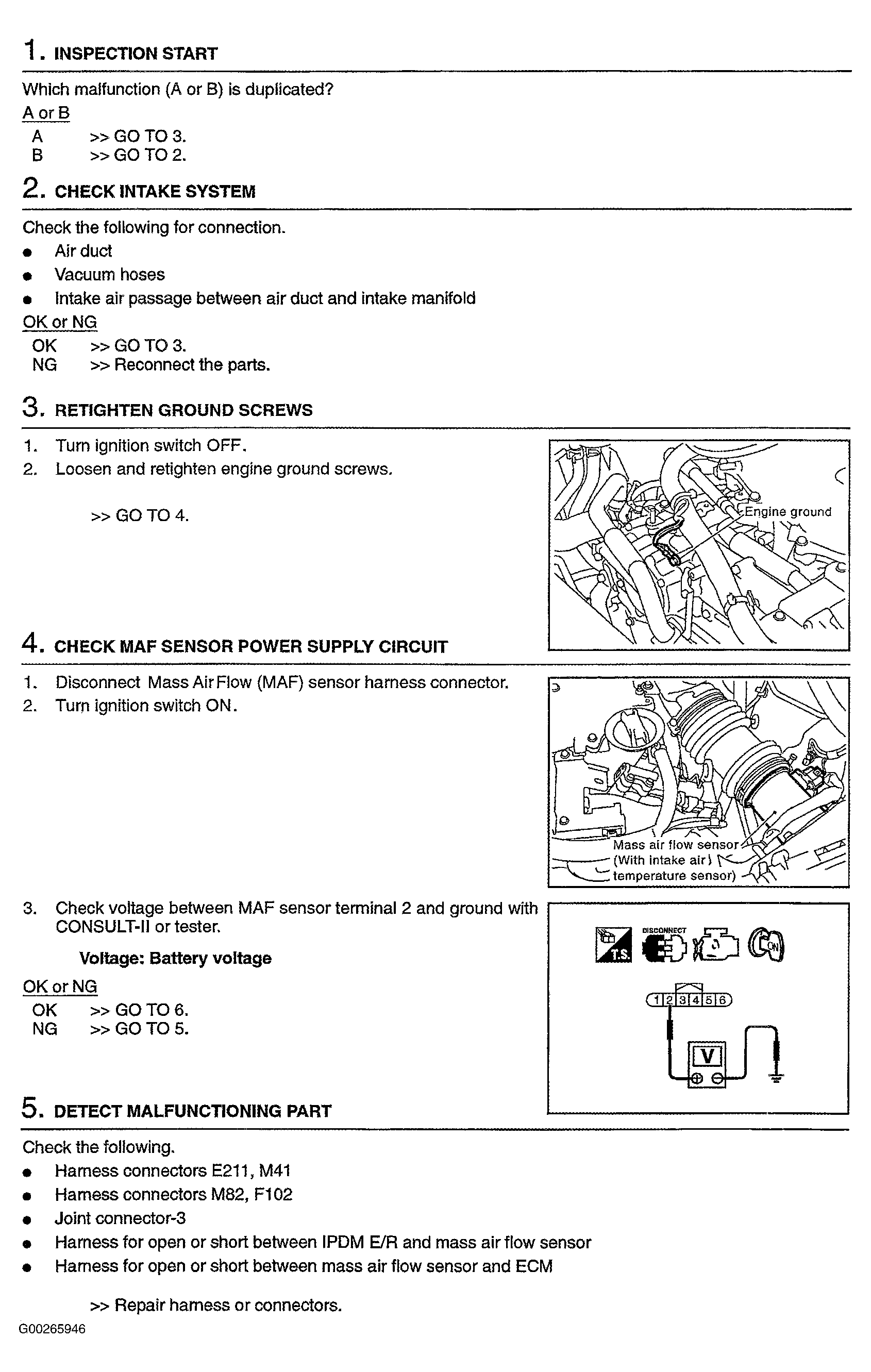

Fig 3: DTC P0101 Diagnostic Procedure (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

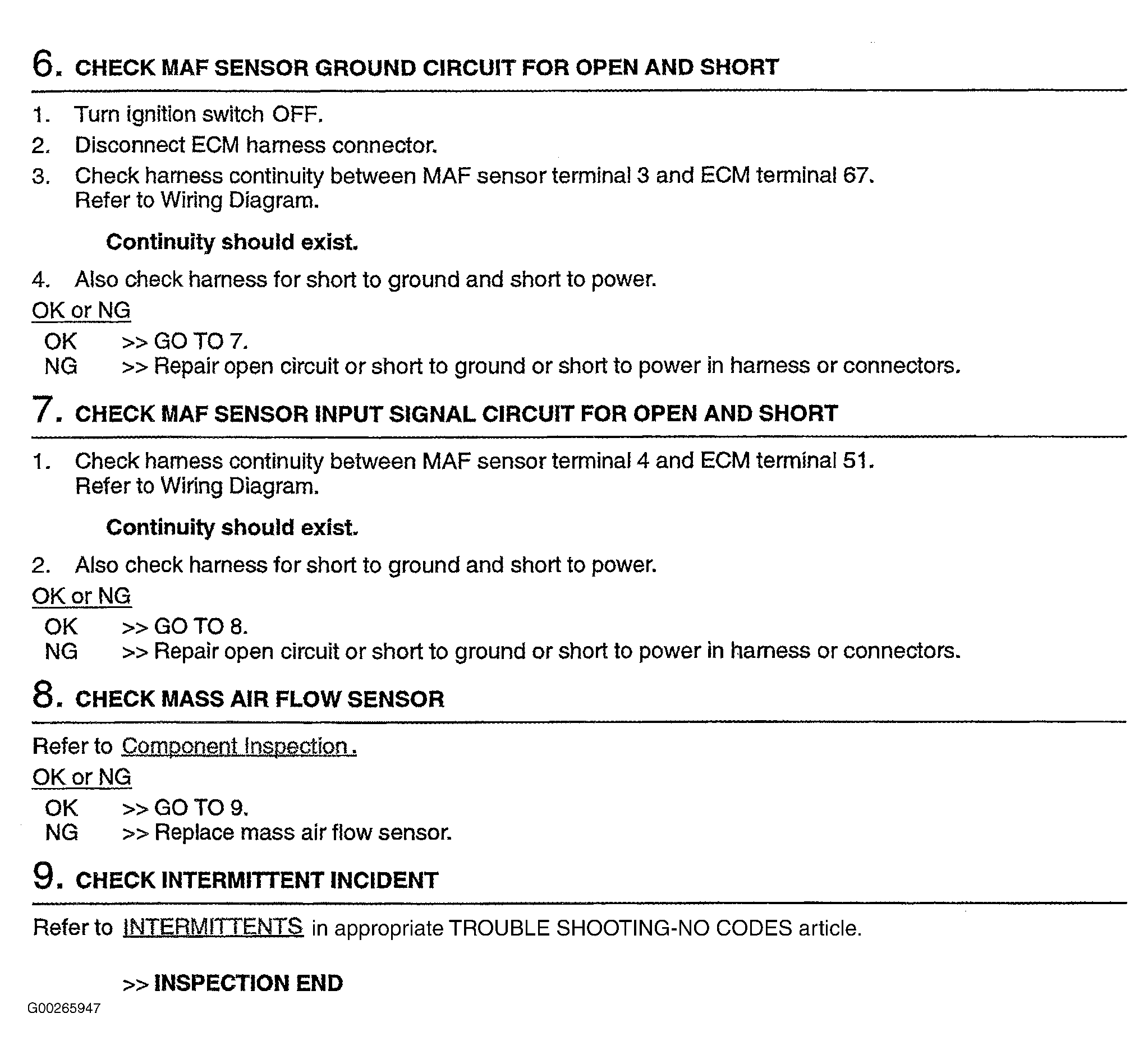

Fig 4: DTC P0101 Diagnostic Procedure (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
