Power Window System
>>
Terminal and Reference Value for Power Window Main Switch / With Front and Rear Power Window Anti-pinch System
Terminal and Reference Value for Power Window Main Switch / With Front and Rear Power Window Anti-pinch System

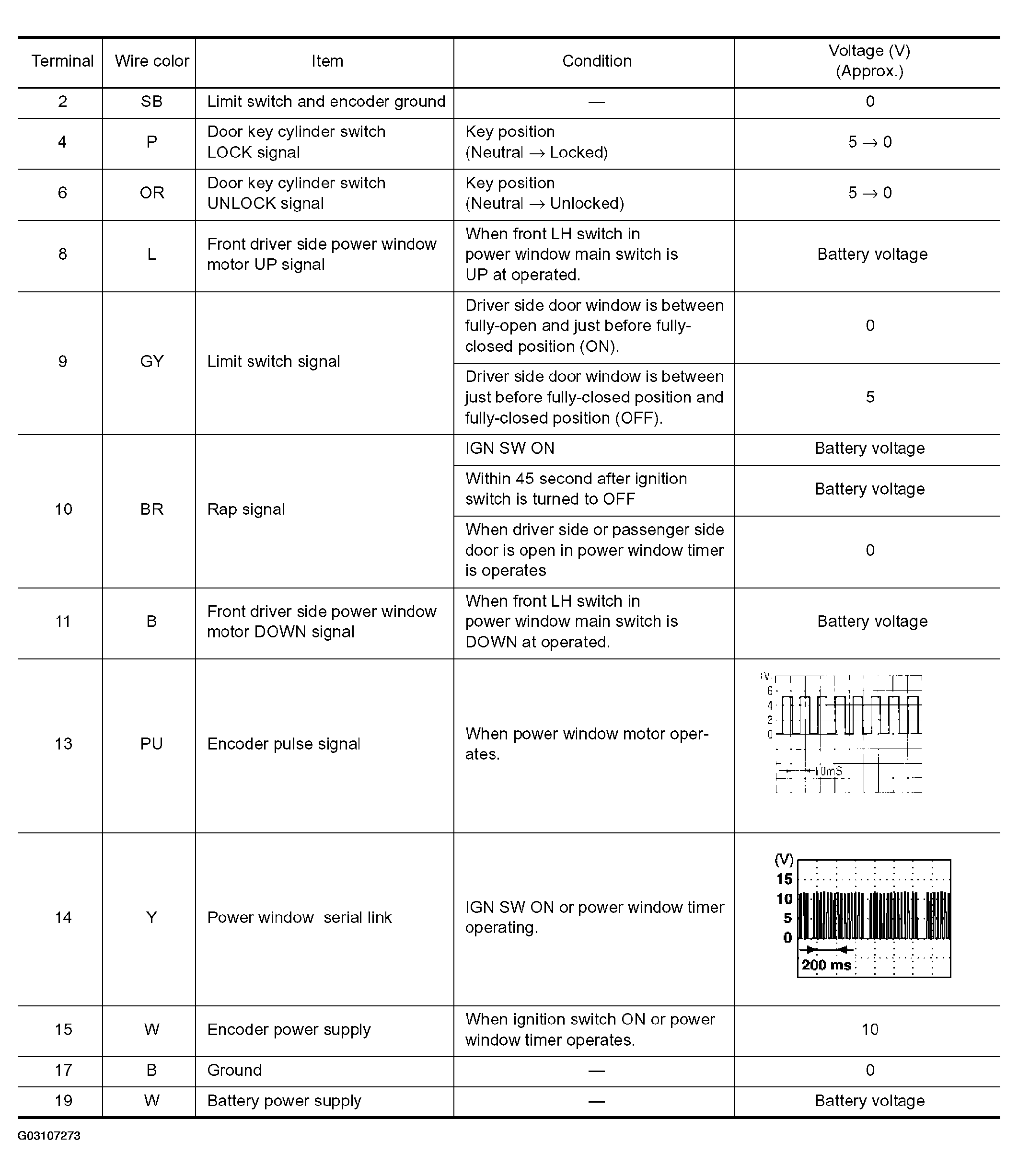

Fig 1: Terminal And Reference Value For Power Window Main Switch/With Front And Rear Power Window Anti-Pinch System
Courtesy of NISSAN MOTOR CO., U.S.A.
