Manual Mode Switch

Check continuity between terminals. Refer to "WIRING DIAGRAM - AT - MMSW ".

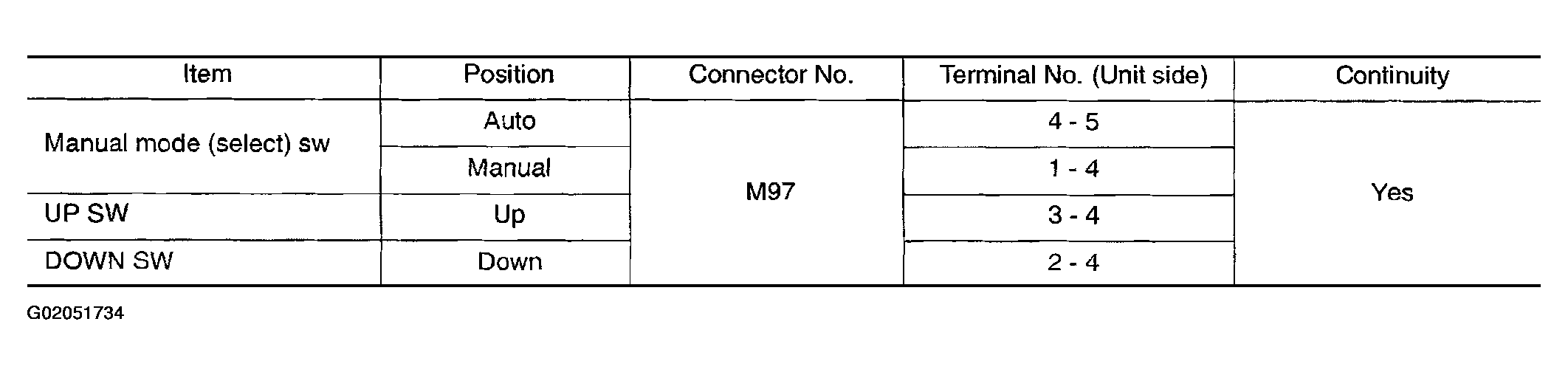

Fig 1: Connector Terminal Continuity Table

G02051734

Courtesy of NISSAN MOTOR CO., U.S.A.
