A/T Interlock Fastening Pattern Table

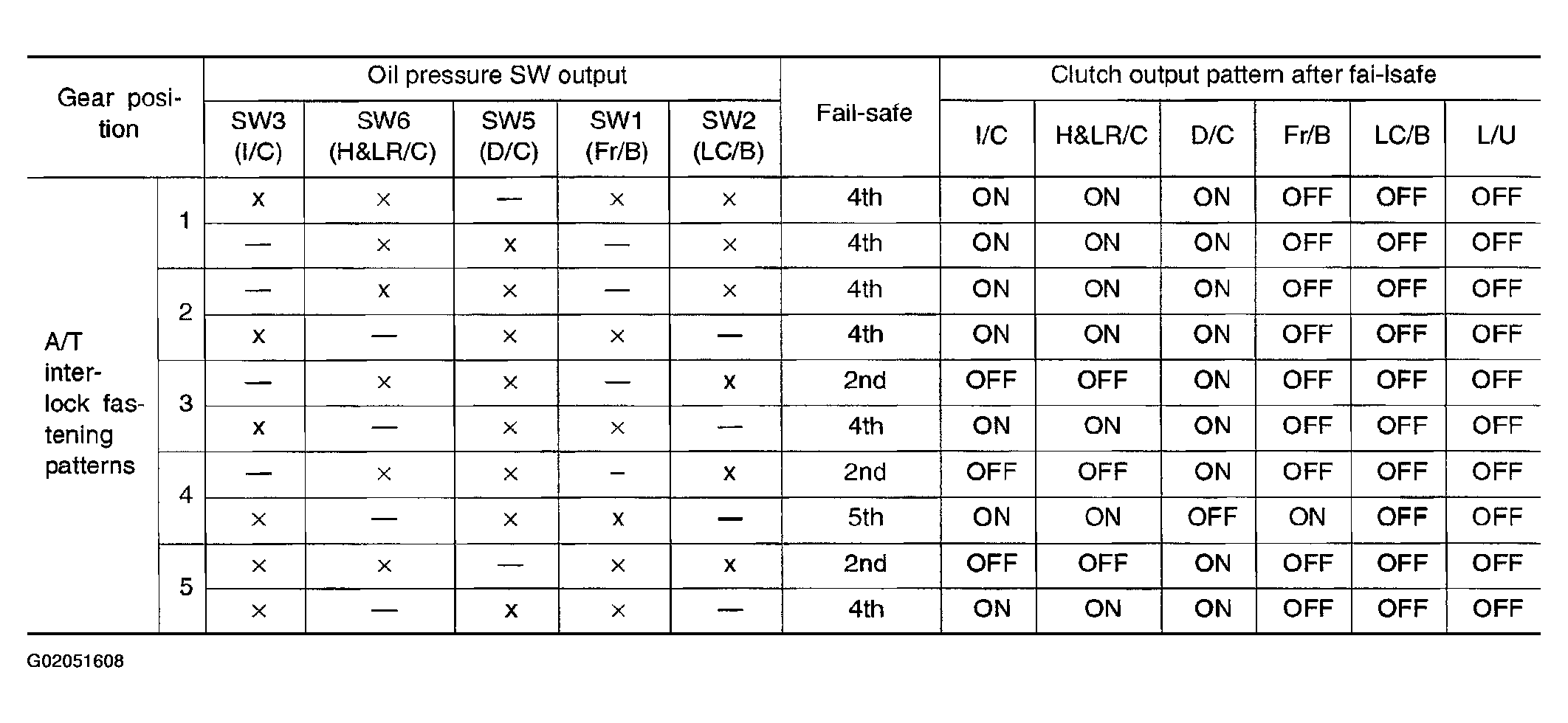

Fig 1: A/T Interlock Fastening Pattern Table

G02051608

Courtesy of NISSAN MOTOR CO., U.S.A.
