With Consult-II: Notes

  1. Turn ignition switch to "ON" position. (Do not start engine.)
  2. Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
  3. Start engine and maintain the following conditions for at least 10 minutes (Total). (It is not necessary to maintain continuously.)

    VHCL SPEED SE: 10 km/h (6 MPH) or more

    THRTL POS SEN: More than 1.2V

    Selector lever: "D" position

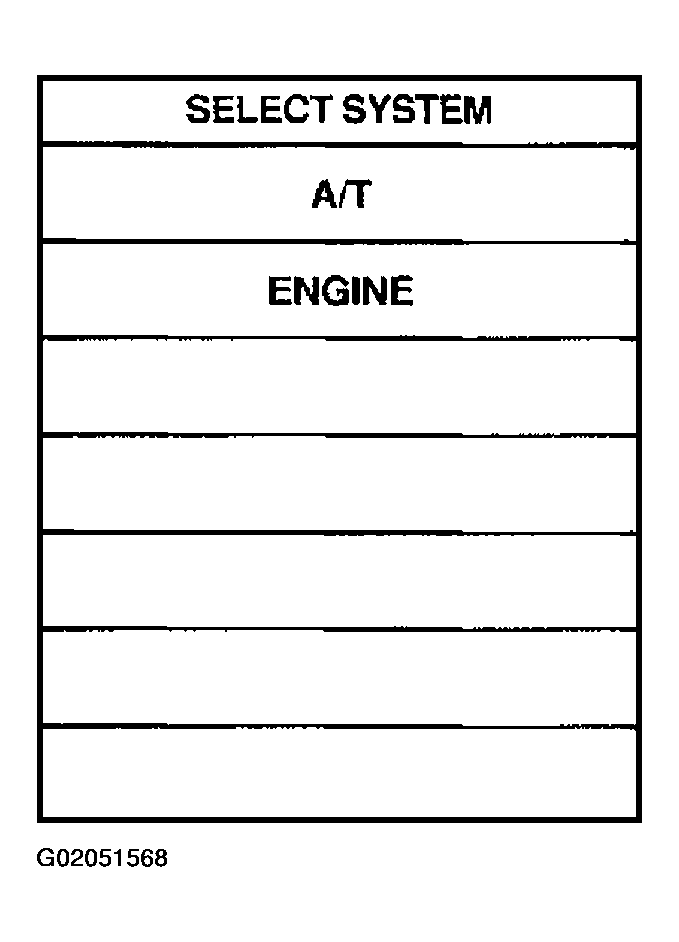

    Fig 1: Consult II Select System Data Monitor
    G02051568Courtesy of NISSAN MOTOR CO., U.S.A.
