With Consult-II

  1. Turn ignition switch "ON" position. (Do not start engine.)
  2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
  3. Wait for at least 2 consecutive seconds.
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

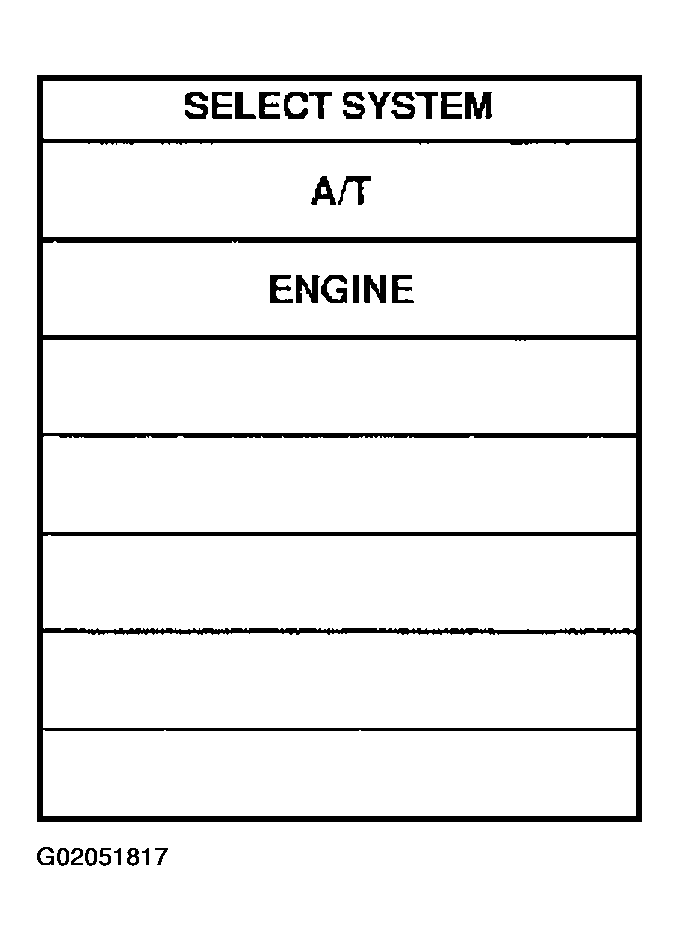

    Fig 1: Consult II Select System Data Monitor
    G02051817Courtesy of NISSAN MOTOR CO., U.S.A.
