Shift Lock Solenoid

CAUTION: Be sure to apply the voltage of the correct polarity to the respective terminals. Otherwise, the part may be damaged.

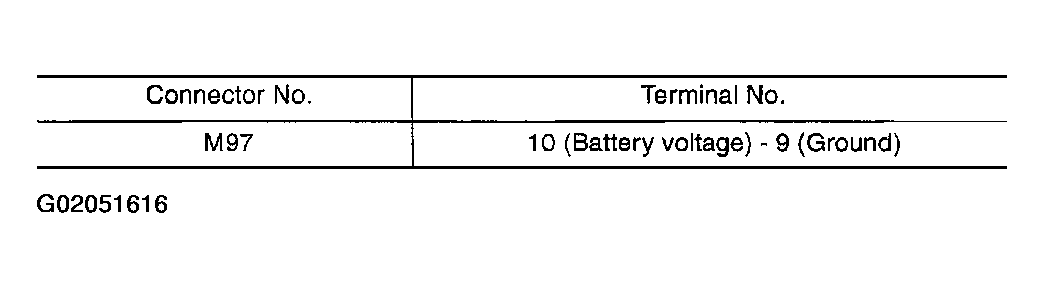

Fig 1: Connector Terminal Table
G02051616Courtesy of NISSAN MOTOR CO., U.S.A.

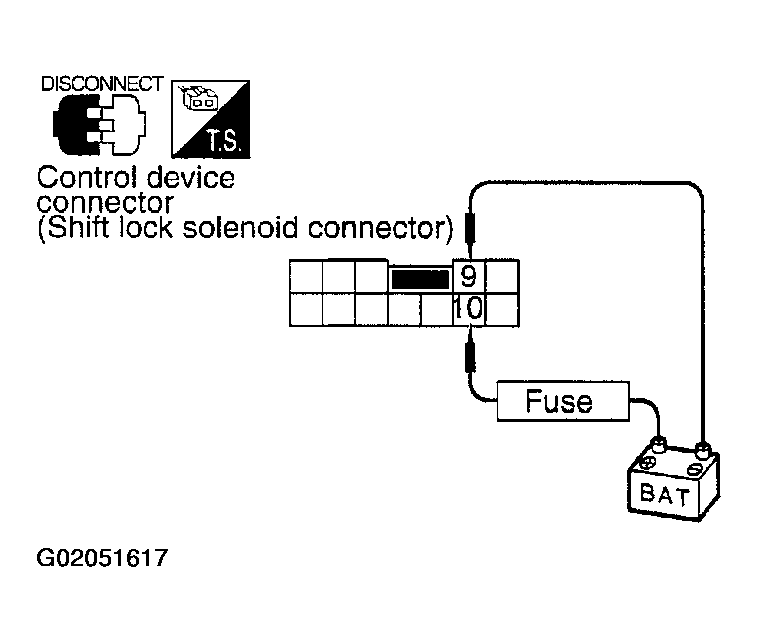

Fig 2: Checking Control Device Connector
G02051617Courtesy of NISSAN MOTOR CO., U.S.A.
