ASCD Control Unit (Without ICC) Connector End View (M35)

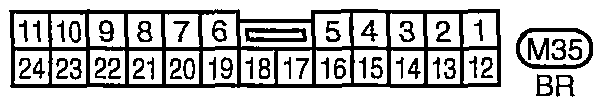

Fig 1: ASCD Control Unit (Without ICC) Connector End View (M35)

G10830537

Courtesy of NISSAN NORTH AMERICA, INC.
