Adjustable Vehicle Status

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: View Of Vehicle Electronic Systems Display (1 Of 3)
G00394121Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: View Of Vehicle Electronic Systems Display (2 Of 3)
G00394122Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: View Of Vehicle Electronic Systems Display (3 Of 3)
G00394123Courtesy of NISSAN MOTOR CO., U.S.A.

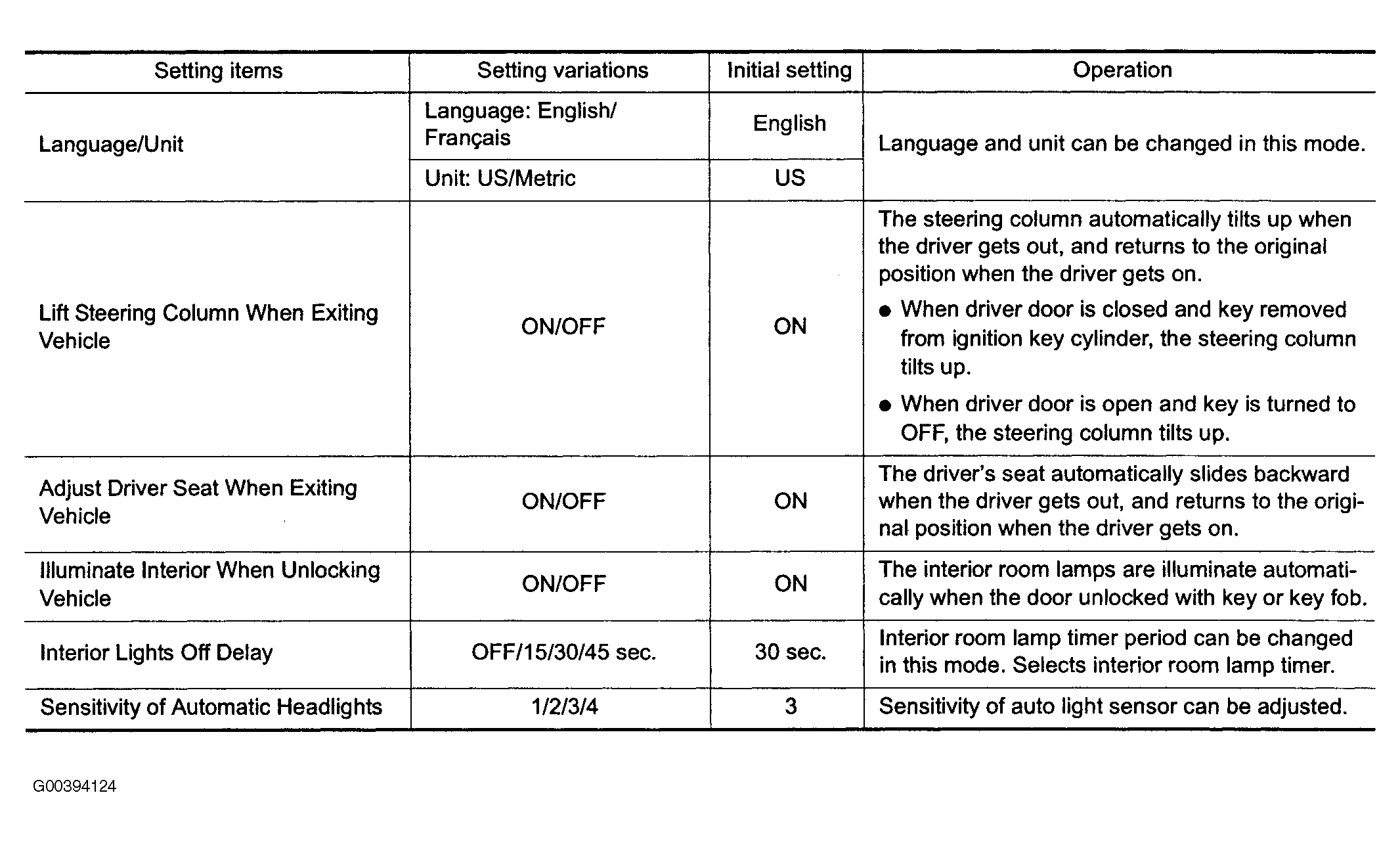

Fig 4: Adjustable Vehicle Status Table (1 Of 2)
G00394124Courtesy of NISSAN MOTOR CO., U.S.A.

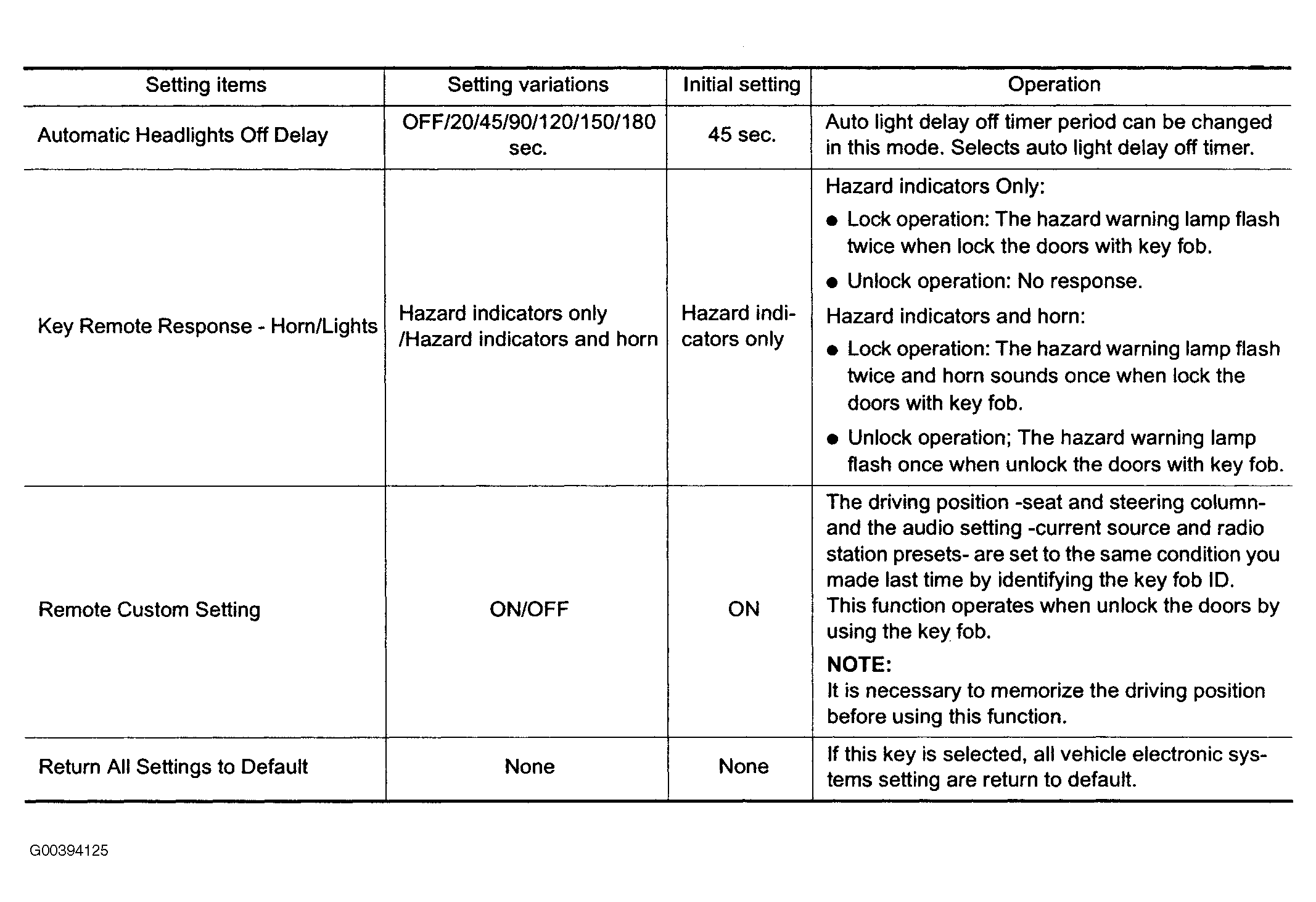

Fig 5: Adjustable Vehicle Status Table (2 Of 2)
G00394125Courtesy of NISSAN MOTOR CO., U.S.A.
