Without CONSULT-II

Remove fuel pump fuse. See Fig 1or Fig 2 . Start engine and allow to run until engine stalls due to lack of fuel. Crank engine 2-3 more times to verify all pressure has dissipated.

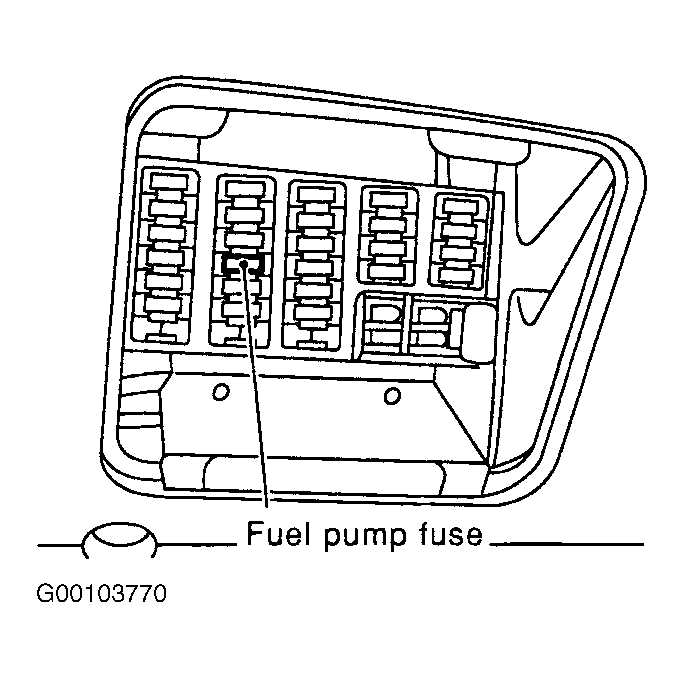

Fig 1: Locating Fuel Pump Fuse (G20)
G00103770Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Locating Fuel Pump Fuse (Q45)
G00103771Courtesy of NISSAN MOTOR CO., U.S.A.
