Terminals and Reference Value for AV and NAVI Control unit

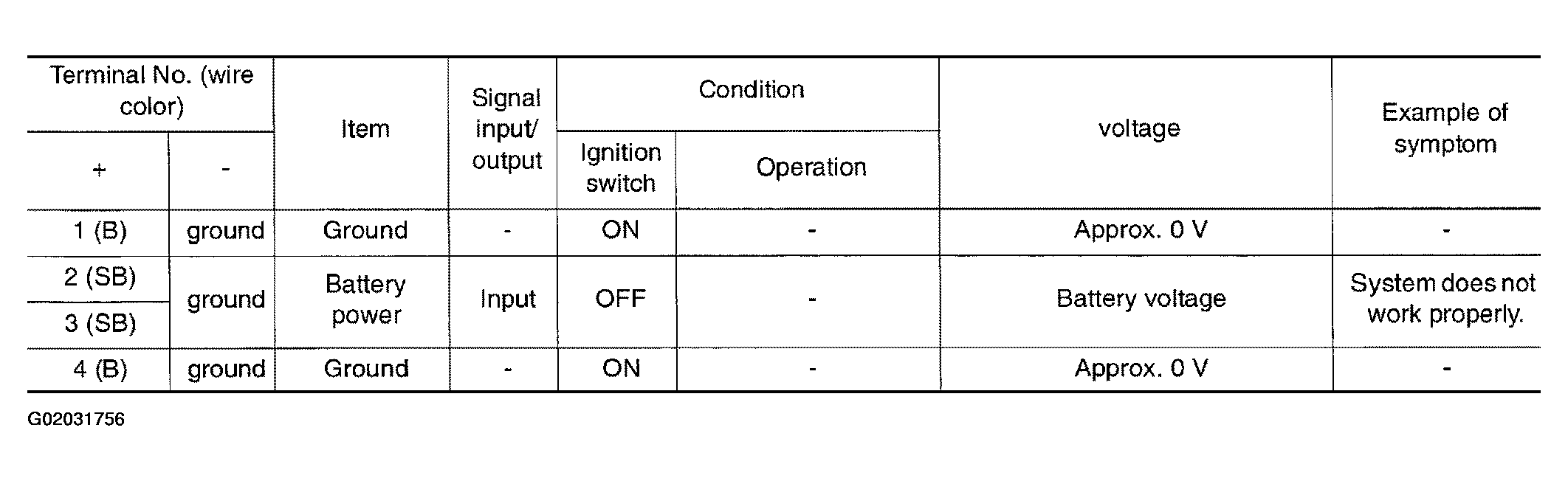

Fig 1: Identifying AV And NAVI Control Unit Terminals And Reference Value (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

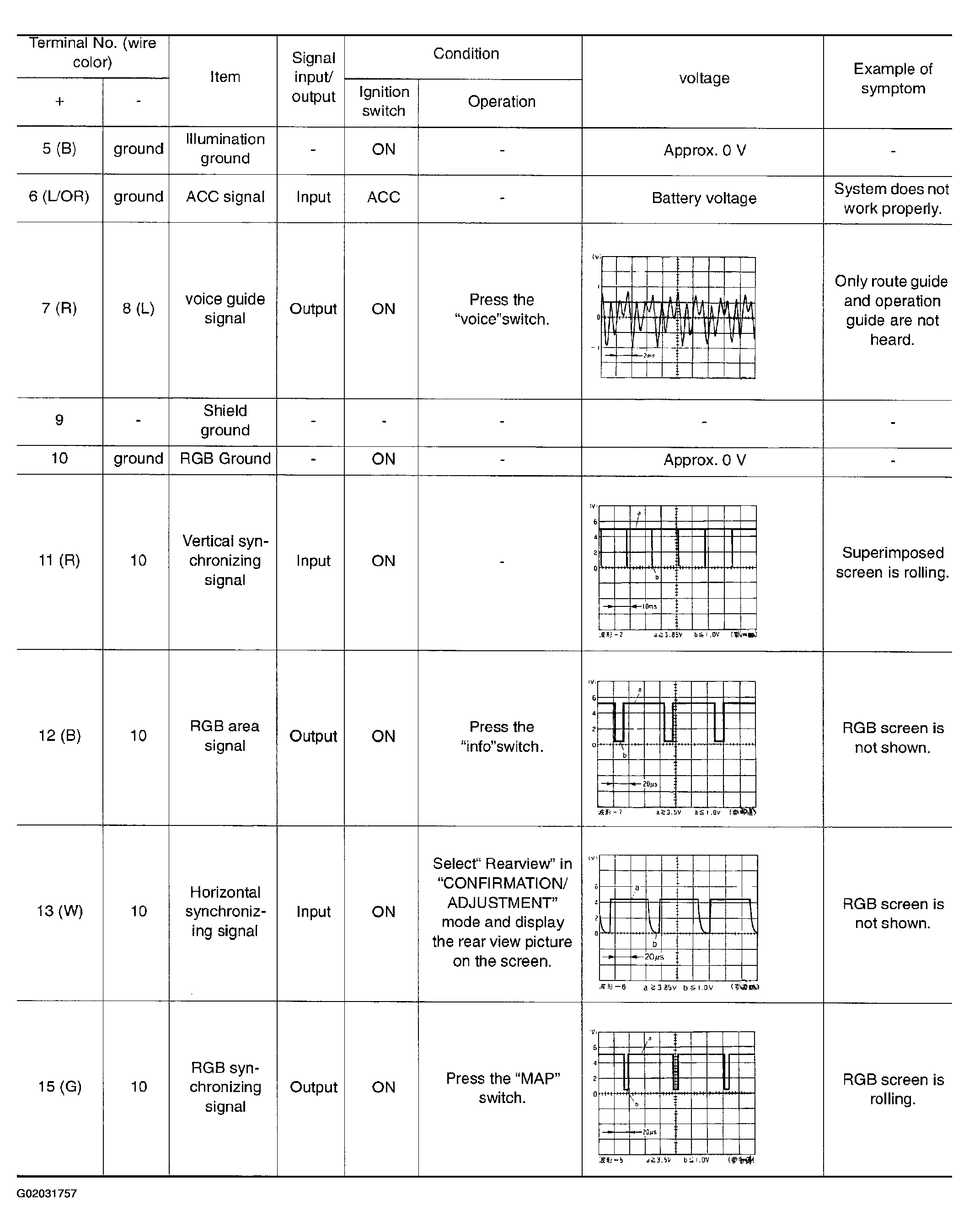

Fig 2: Identifying AV And NAVI Control Unit Terminals And Reference Value (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

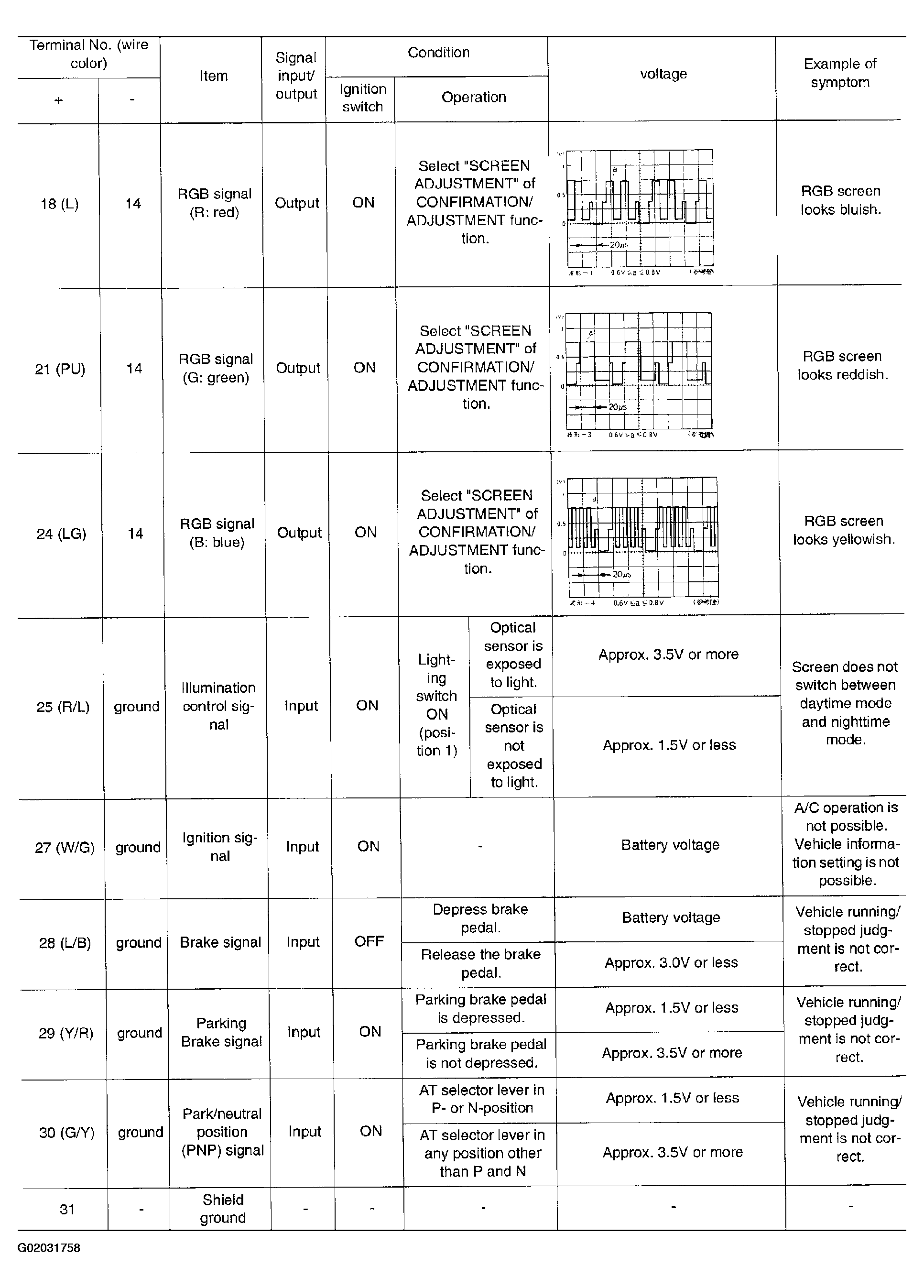

Fig 3: Identifying AV And NAVI Control Unit Terminals And Reference Value (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

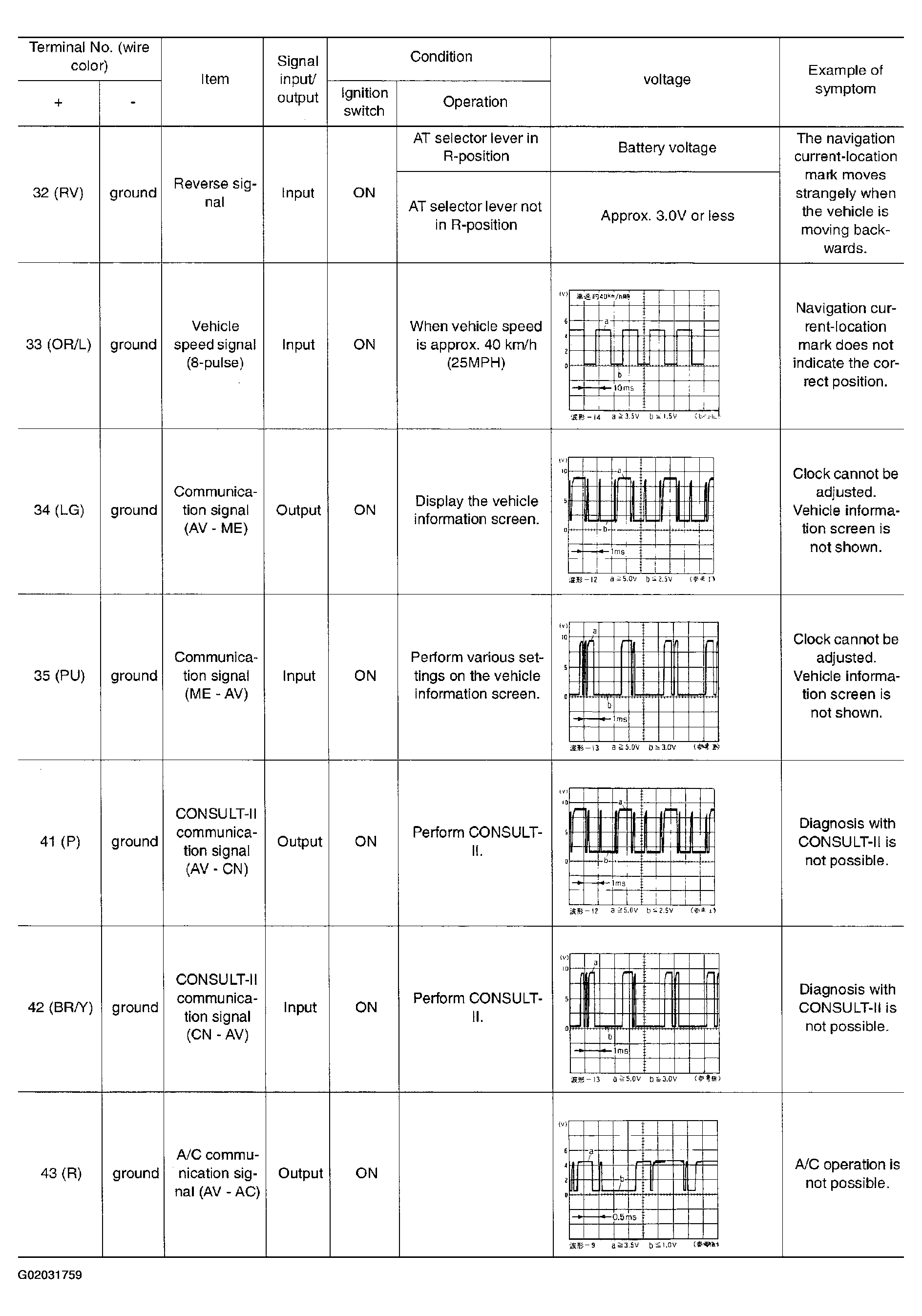

Fig 4: Identifying AV And NAVI Control Unit Terminals And Reference Value (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying AV And NAVI Control Unit Terminals And Reference Value (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

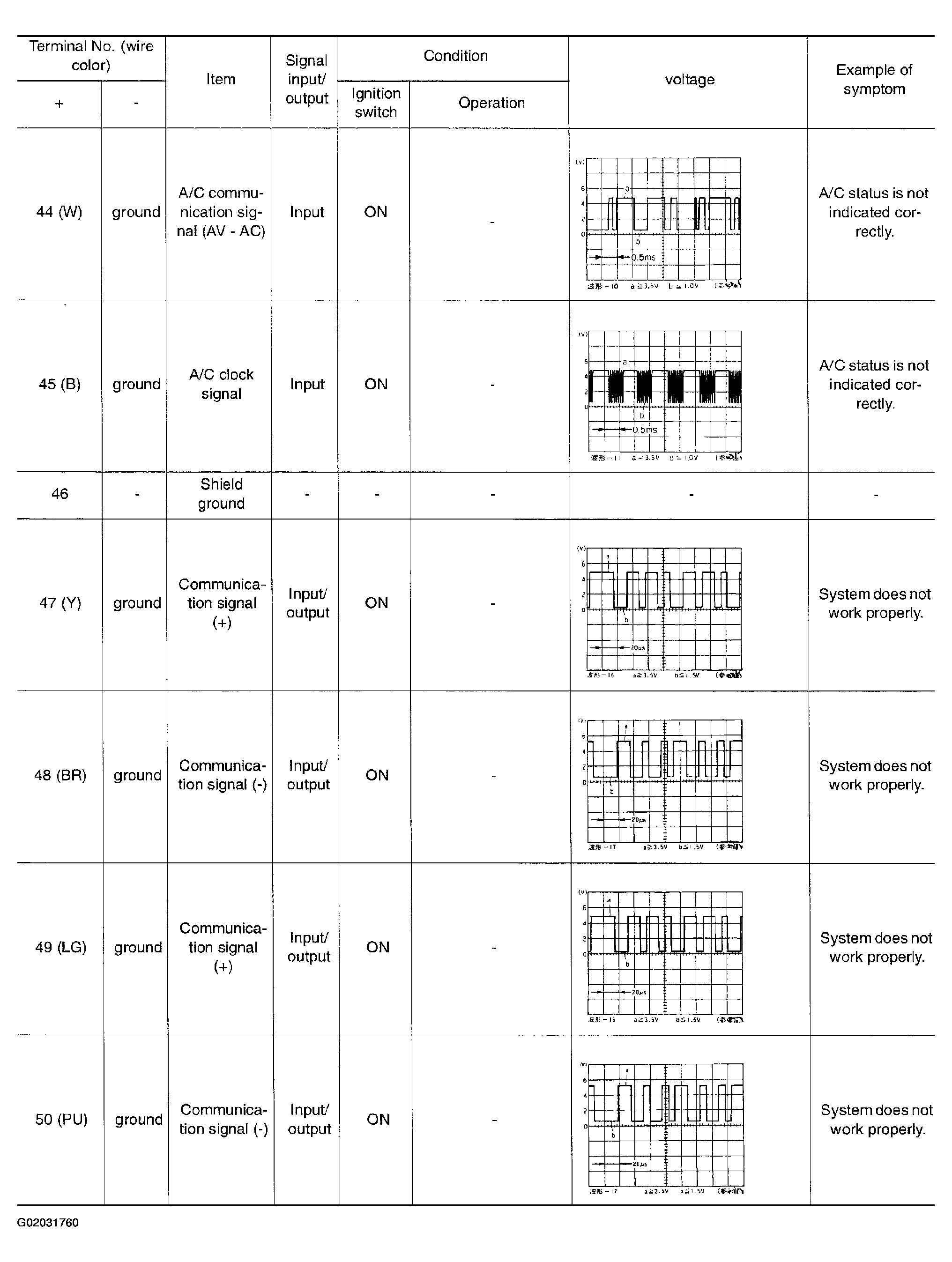

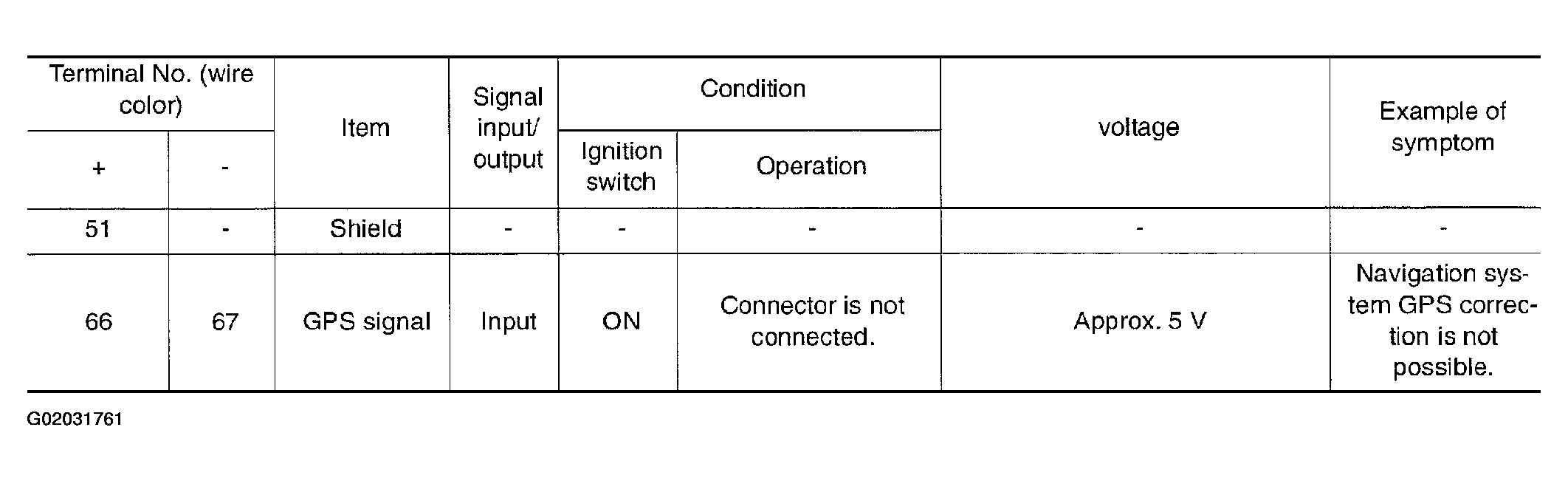

Fig 6: Identifying AV And NAVI Control Unit Terminals And Reference Value (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
